D2-45057-QR - Renesas Electronics

Description: The D2-4P (D2-45057 and D2-45157) devices are complete System-on-Chip (SoC) Class-D digital audio amplifiers. These devices combine high performance integrated Power Stages, an optimized Audio Processor feature set, and a PWM controller to offer a complete, powerful, and very cost effective audio solution for high volume and cost-critical products. This 4th generation Digital Audio Processor (D2-4P) device combines extensive integrated Digital Signal Processor (DSP) audio processing with amplifier control f

Download D2-45057-QR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
D2-45057-QR - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

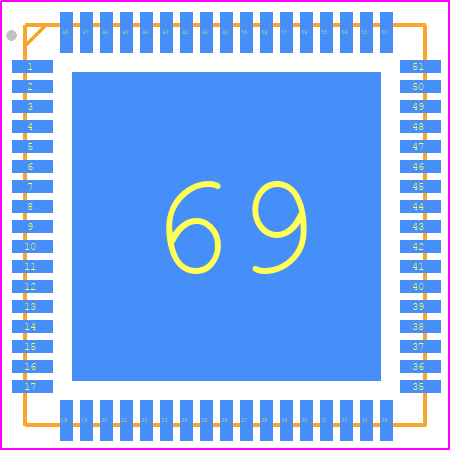

D2-45057-QR - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 68 Ld QFN
click to zoom
3D Models
D2-45057-QR - Renesas Electronics - 3D model - Quad Flat No-Lead - 68 Ld QFN
click to zoom

D2-45057-QR Details

  • Manufacturer Part Number:

    D2-45057-QR

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-68

  • Pin Count:

    68

  • Manufacturer Package Code:

    L68.10X10C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2017-09-21

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N68

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC68,.4SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    Audio SoC

D2-45057-QR Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout and thermal management guide in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and EMI reduction.
  • The D2-45057-QR has built-in overcurrent protection, but it's recommended to implement additional external protection circuits to ensure robust fault detection and protection. Renesas provides guidance on implementing overcurrent protection and fault detection in their application notes.
  • Renesas provides recommended power-up and power-down sequences in their datasheet and application notes. It's crucial to follow these sequences to ensure proper device operation, prevent latch-up, and reduce power-on reset (POR) issues.
  • Renesas provides guidance on optimizing the device for low-power consumption and reducing standby current in their application notes. Techniques include using power gating, clock gating, and dynamic voltage and frequency scaling (DVFS).
  • Renesas provides guidance on EMI and EMC design considerations in their application notes and design guides. It's essential to follow these guidelines to ensure compliance with regulatory requirements and minimize electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

D2-45057-QR Overview

Use the download button to access the D2-45057-QR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2-45, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
