The recommended torque for the screw locks on the D2808-42 connector is 0.5 Nm to 1.5 Nm (0.37 lbf.in to 1.06 lbf.in).
Yes, the D2808-42 connector is designed to withstand high-vibration environments. It has a ruggedized design and secure screw-locking mechanism to ensure reliable connections in harsh environments.
The D2808-42 connector is rated for operating temperatures between -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and potential thermal stresses when using the connector in high-temperature environments.
While the D2808-42 connector is designed for 24 AWG wire, it can accommodate wire sizes between 20 AWG and 26 AWG. However, it's crucial to ensure the wire size and insulation diameter are compatible with the connector's wire entry and crimping system.
Yes, the D2808-42 connectors from Harwin are RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring they meet the necessary environmental and safety standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2808-42 Overview

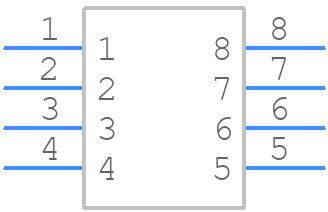

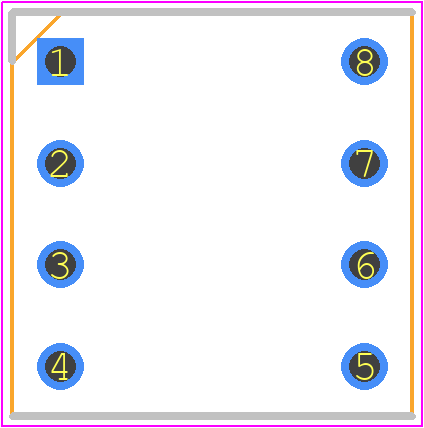

Use the download button to access the D2808-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2808,
or try a keyword search, such as Sockets and Chip Carriers
