The recommended torque for the screw threads of the D2818-42 connector is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
Yes, the D2818-42 connector is designed to withstand high-vibration environments. However, it's recommended to follow Harwin's guidelines for vibration testing and to consult with their technical support team for specific application requirements.
The D2818-42 connector is designed to operate in a temperature range of -40°C to +125°C and can withstand humidity up to 95%. However, for extreme environmental conditions, it's recommended to consult with Harwin's technical support team for specific guidance and potential customization options.
The D2818-42 connector is rated for a minimum of 500 mating cycles, depending on the application and environmental conditions. However, this can be affected by factors such as connector cleaning, handling, and storage.
The D2818-42 connector is designed to be compatible with other manufacturers' mating connectors that meet the same industry standards (e.g., MIL-DTL-83513). However, it's recommended to consult with Harwin's technical support team to ensure compatibility and to discuss any potential customization options.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2818-42 Overview

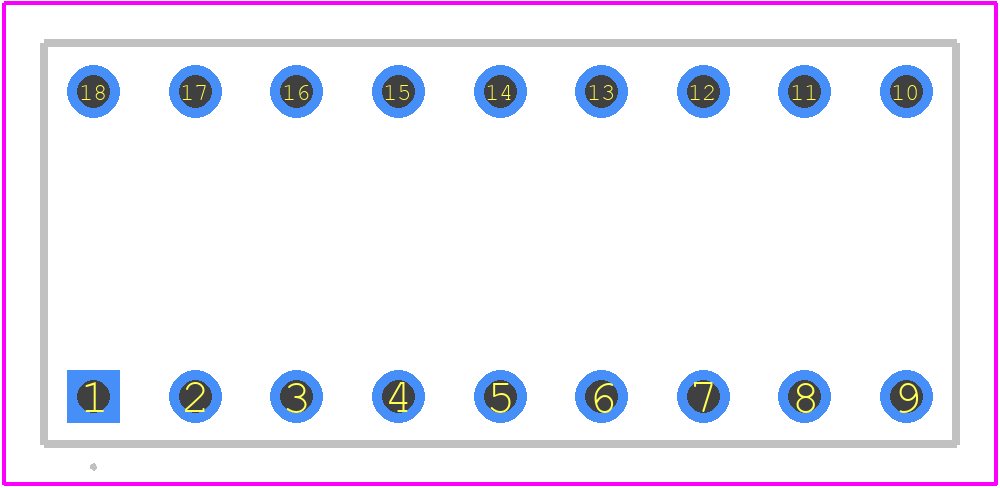

Use the download button to access the D2818-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2818,
or try a keyword search, such as Sockets and Chip Carriers
