The recommended torque for the screw threads of the D2824-42 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the D2824-42 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G peak acceleration.
Yes, the D2824-42 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
The D2824-42 connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent mating and unmating is required.
While the D2824-42 connector is designed for use with 24 AWG wire, it can also be used with other wire sizes, such as 22 AWG or 26 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2824-42 Overview

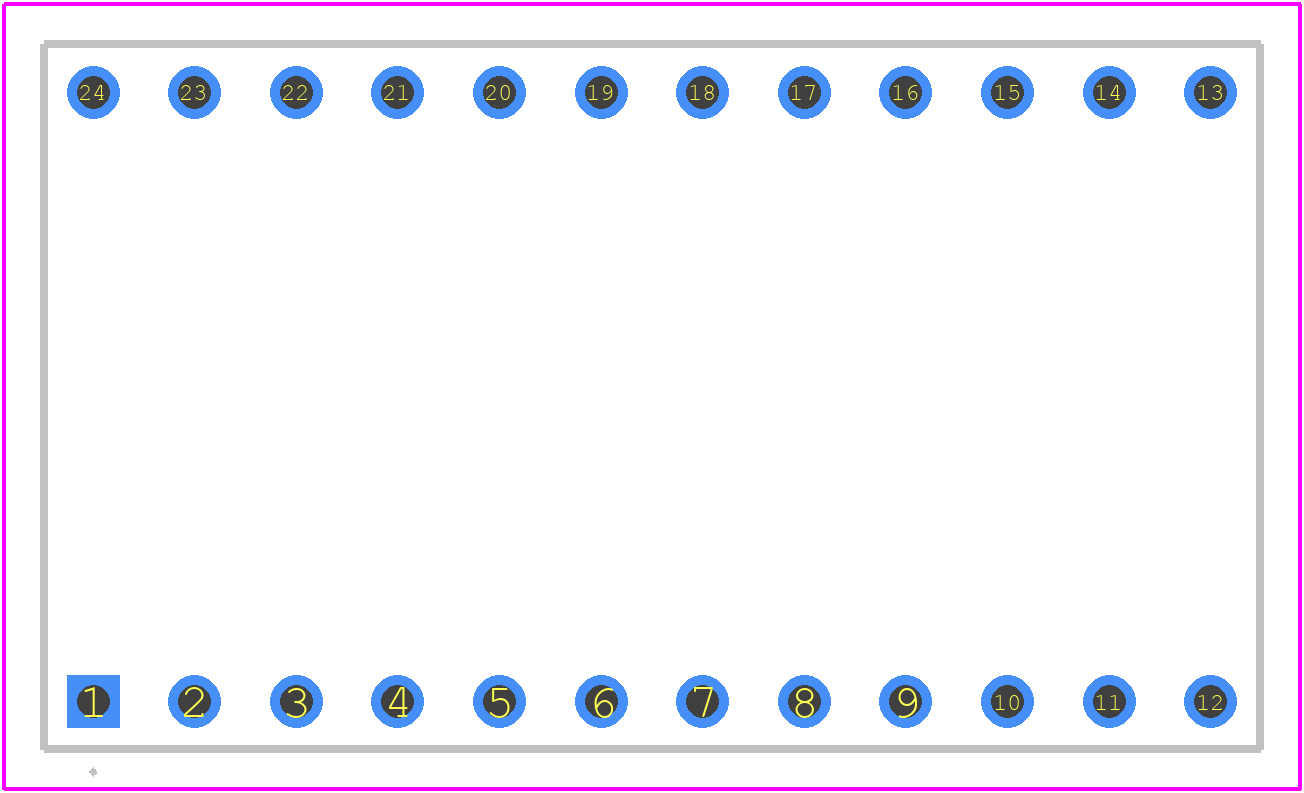

Use the download button to access the D2824-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2824,
or try a keyword search, such as Sockets and Chip Carriers
