D3V3F4U6S-7 - Diodes Incorporated

Description: Diodes Inc D3V3F4U6S-7, 9-Element Uni-Directional TVS Diode Array, 0.2W, 6-Pin SOT-363 (SC-88)

Download D3V3F4U6S-7 Model

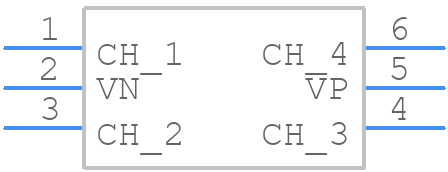

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
D3V3F4U6S-7 - Diodes Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - FMMT624TA
click to zoom
3D Models
D3V3F4U6S-7 - Diodes Incorporated  - 3D model - SOT23 (6-Pin) - FMMT624TA
click to zoom

D3V3F4U6S-7 Details

  • Manufacturer Part Number:

    D3V3F4U6S-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Breakdown Voltage-Min:

    6 V

  • Breakdown Voltage-Nom:

    6 V

  • Clamping Voltage-Max:

    10 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.2 W

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

D3V3F4U6S-7 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the D3V3F4U6S-7 is a standard SOT23-6 package with a 1.5mm x 1.5mm body size. A minimum pad size of 0.5mm x 0.5mm is recommended for reliable soldering.
  • To ensure the D3V3F4U6S-7 operates within its recommended operating conditions, maintain a junction temperature (Tj) below 150°C, and keep the input voltage (Vin) between 2.5V and 5.5V. Also, ensure the output current (Iout) does not exceed 1A.
  • The typical dropout voltage for the D3V3F4U6S-7 is around 0.5V to 1.0V, depending on the output current and input voltage. This means the output voltage will be around 0.5V to 1.0V lower than the input voltage.
  • While the D3V3F4U6S-7 can operate up to 150°C, it's essential to consider the derating curve for output current and power dissipation at higher temperatures. Consult the datasheet for specific derating information to ensure reliable operation.
  • To calculate the power dissipation (PD) for the D3V3F4U6S-7, use the formula: PD = (Vin - Vout) x Iout. This will give you the total power dissipation in watts. Ensure the calculated PD is within the recommended maximum power dissipation of 1.5W.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

D3V3F4U6S-7 Overview

Use the download button to access the D3V3F4U6S-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D3V3F, or try a keyword search, such as Transient Suppressors
