The recommended torque value is 0.4 Nm to 0.6 Nm (3.5 in-lbs to 5.3 in-lbs) for the D4S20D-40MA5-C connector, as specified by Rosenberger.
Yes, the D4S20D-40MA5-C connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial systems.
Yes, the D4S20D-40MA5-C connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity up to 95% RH. However, it's essential to follow Rosenberger's guidelines for environmental considerations.
The D4S20D-40MA5-C connector has a mating cycle life of at least 500 cycles, as specified by Rosenberger, making it suitable for applications that require frequent connections and disconnections.
Yes, the D4S20D-40MA5-C connector is part of Rosenberger's D4S series, which is designed to be compatible with other connectors in the same series. However, it's essential to verify compatibility with specific connectors and applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D4S20D-40MA5-C Overview

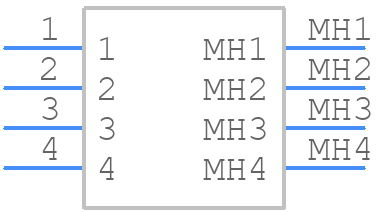

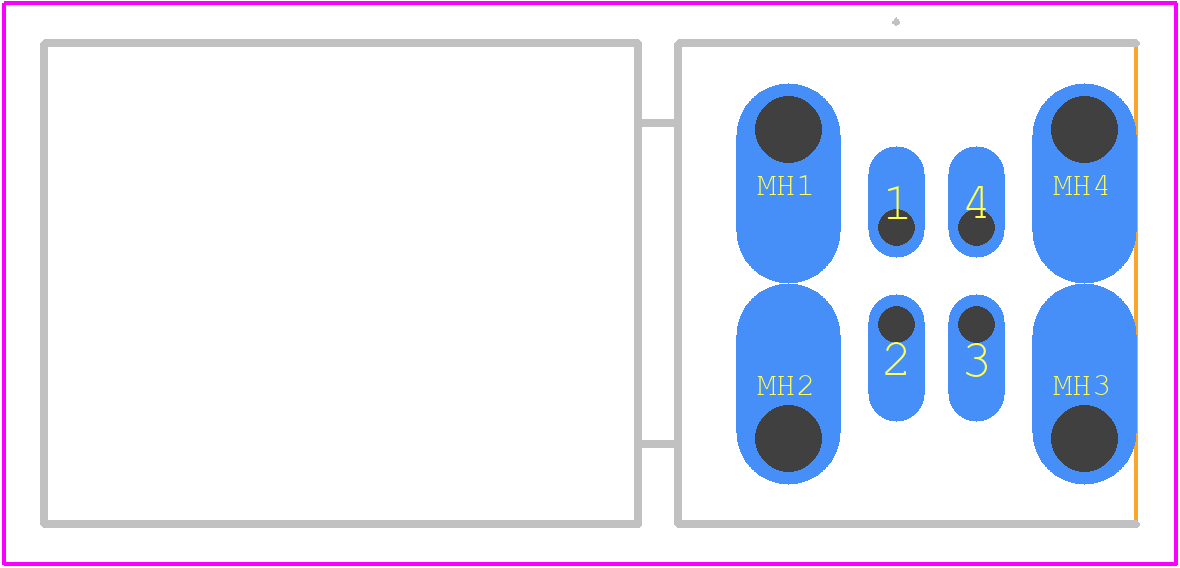

Use the download button to access the D4S20D-40MA5-C schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like D4S20,
or try a keyword search, such as Other RF Connectors
