D501J12S2AQA - LITTELFUSE

D501J12S2AQA Details

• Manufacturer Part Number:

  D501J12S2AQA

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Littelfuse Inc

• Actuator Color:

  BLACK

• Actuator Length:

  0.218 inch

• Actuator Material:

  POLYAMIDE66

• Actuator Type:

  ROCKER

• Additional Feature:

  PANEL MOUNTABLE APPROVALS: CSA; UL

• Body Breadth:

  16.635 mm

• Body Color:

  BLACK

• Body Height:

  12.7 mm

• Body Length or Diameter:

  20.82 mm

• Center Contact Material:

  SILVER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  10A@125VAC

• Contact Current(AC)-Max:

  10 A

• Contact Current(DC)-Max:

  10 A

• Contact (DC) Max Rating R Load:

  10A@30VDC

• Contact Function:

  ON-ON

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  SILVER ALLOY

• End Contact Plating:

  SILVER

• Housing Material:

  POLYAMIDE66

• Insulation Resistance:

  1000000000 Ω

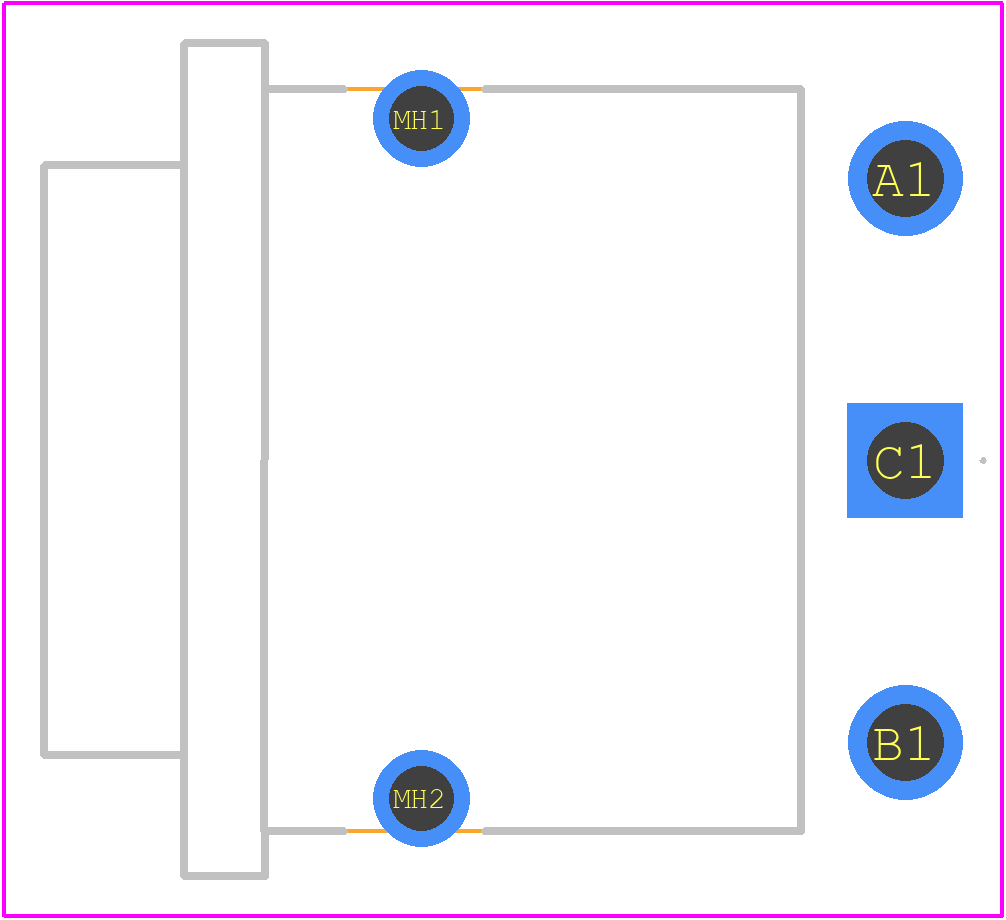

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  65 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  5

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPDT

• Switch Type:

  ROCKER SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Length:

  0.138 inch

• Termination Type:

  SOLDER
