D6417760BL200ADV - Renesas Electronics

Description: The SH7760 is a microcomputer featuring an LCD controller, USB host, and other peripheral functions. & It includes the SH-4 CPU, which at the object code level is upwardly compatible with the SH-1, SH-2, and SH-3 microcomputers. It has an instruction cache, an operand cache that can be switched between copy-back and write-through modes, a 4-entry full-associative instruction TLB (translation look aside buffer), and MMU (memory management unit) with 64- entry full-associative shared TLB. The sizes of the ins

Download D6417760BL200ADV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
D6417760BL200ADV - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

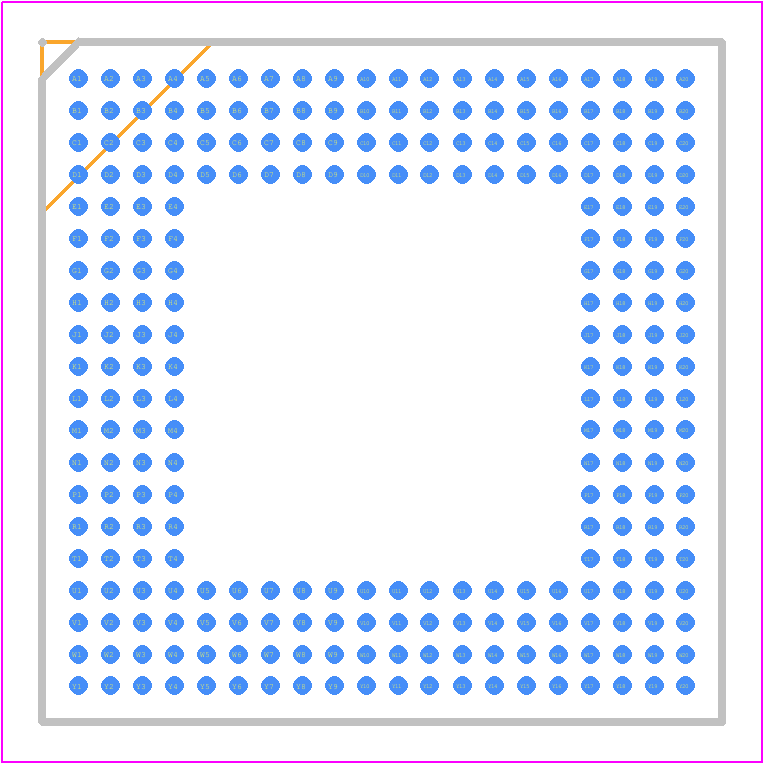

D6417760BL200ADV - Renesas Electronics PCB footprint - BGA - BGA - PLBG0256KA-B
click to zoom
3D Models
D6417760BL200ADV - Renesas Electronics - 3D model - BGA - PLBG0256KA-B
click to zoom

D6417760BL200ADV Details

  • Manufacturer Part Number:

    D6417760BL200ADV

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LFBGA

  • Pin Count:

    256

  • Manufacturer Package Code:

    PLBG0256GB

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

D6417760BL200ADV Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the D6417760BL200ADV is -40°C to 85°C.
  • The clock settings for the D6417760BL200ADV can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register settings and bit configurations.
  • The maximum frequency for the D6417760BL200ADV's CPU is 200 MHz.
  • The D6417760BL200ADV has several power-saving modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management Controller (PMC) and the Power Mode Control Register (PMC_MR). Refer to the datasheet for specific register settings and bit configurations.
  • The D6417760BL200ADV has 256 KB of RAM and 2 MB of Flash memory.
