D95028-42 - Harwin

Description: IC Socket: 14+14 Pos. Female Receptacle DIL Extended Straight THT

Download D95028-42 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
D95028-42 - Harwin - PCB symbol
click to zoom
PCB Footprints

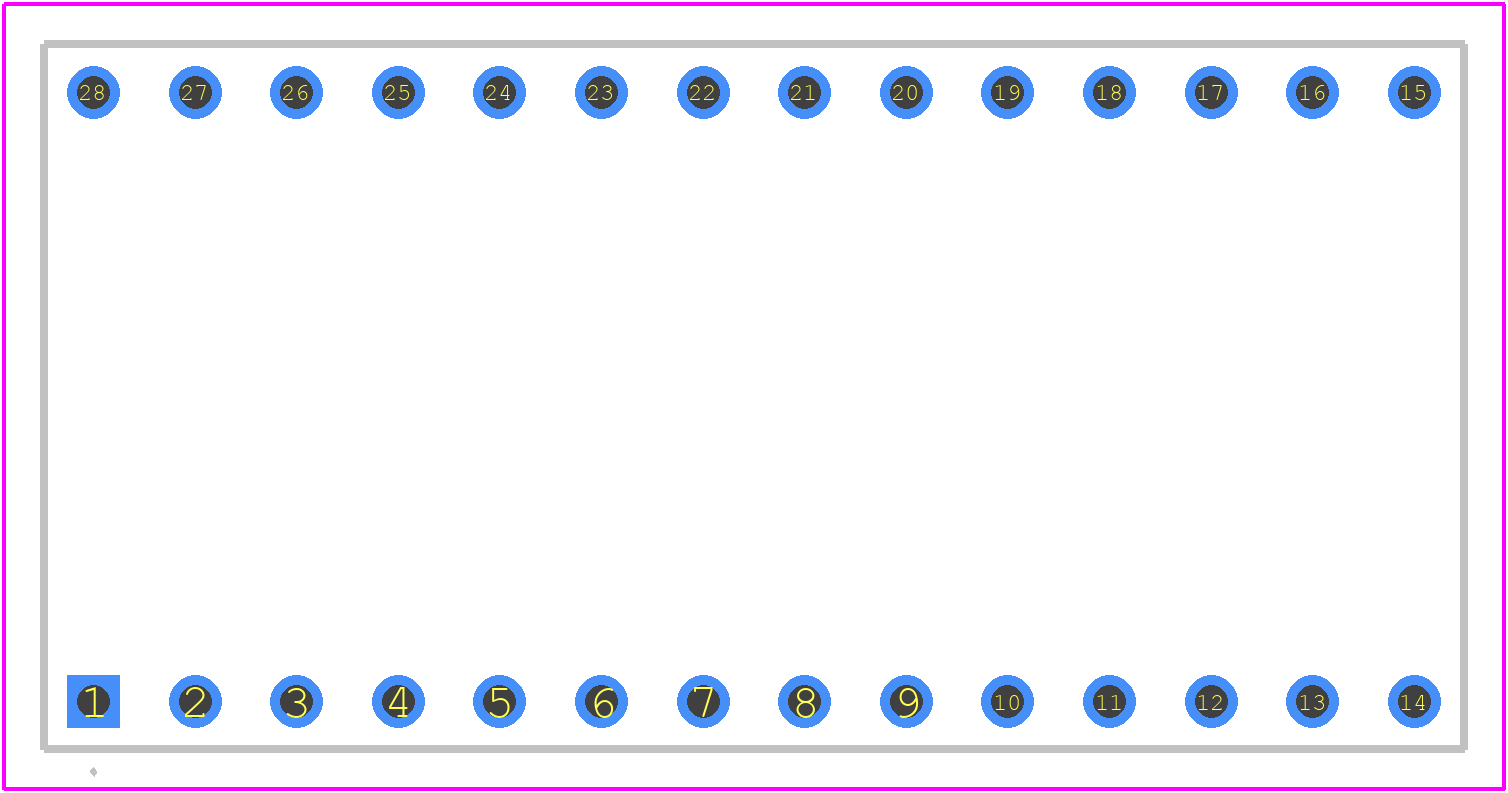

D95028-42 - Harwin PCB footprint - Other - Other - D95028-42-2
click to zoom
3D Models
D95028-42 - Harwin - 3D model - Other - D95028-42-2
click to zoom

D95028-42 Details

  • Manufacturer Part Number:

    D95028-42

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.5

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.694 inch

  • Body Depth:

    0.315 inch

  • Body Length:

    1.398 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    GLASS FILLED POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE

  • Insulation Resistance:

    10000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SOLDER

D95028-42 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the D95028-42 connector is 0.5 Nm to 1.5 Nm, as specified in the Harwin datasheet.
  • Yes, the D95028-42 connector is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak, as per IEC 61373 Cat 2.
  • Yes, the D95028-42 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
  • The D95028-42 connector has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.
  • While the D95028-42 connector is designed for use with 28 AWG wire, it can accommodate wire sizes from 24 AWG to 30 AWG, but this may affect the connector's performance and reliability.
