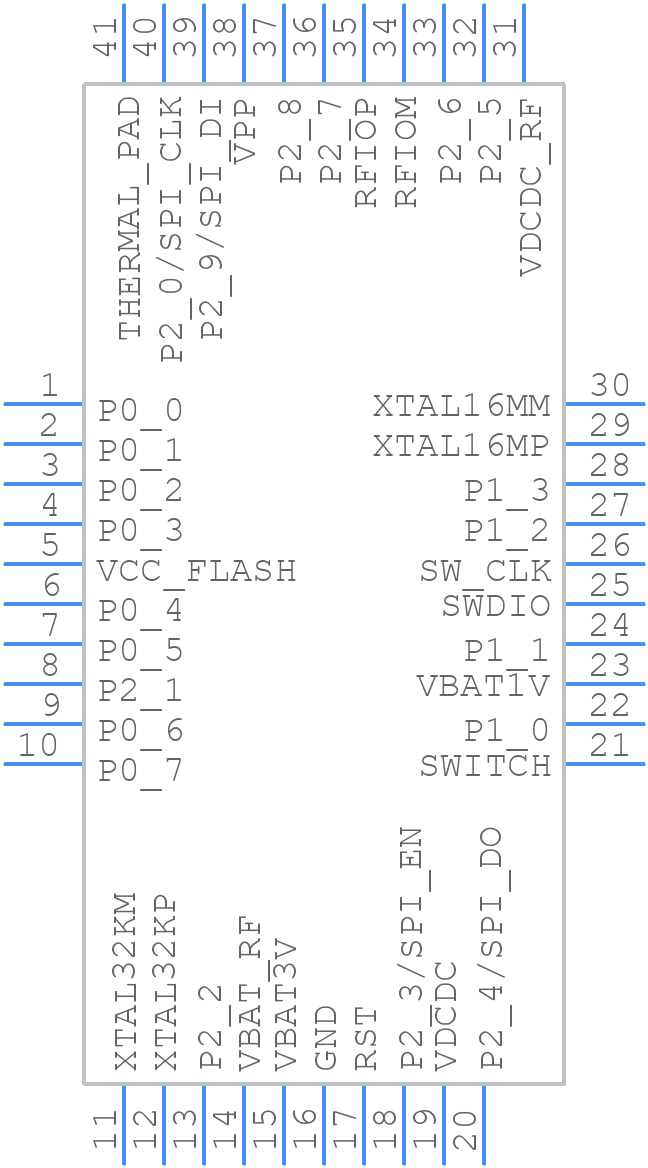

DA14583-01F01AT2 - Renesas Electronics

DA14583-01F01AT2 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
• How do I optimize the power consumption of the DA14583?
  Use the low-power modes (e.g., sleep mode, hibernate mode) when the device is not transmitting or receiving data. Also, optimize the clock frequency and voltage regulator settings to minimize power consumption.
• What is the maximum operating temperature range for the DA14583?
  The DA14583 can operate from -40°C to 85°C, but the optimal operating temperature range is between 0°C to 70°C for optimal performance and reliability.
• How do I ensure electromagnetic compatibility (EMC) with the DA14583?
  Use a metal shield around the DA14583, keep the PCB layout compact, and use a common mode choke or ferrite bead to filter out electromagnetic interference (EMI).
• What is the recommended antenna design for the DA14583?
  A quarter-wavelength monopole antenna or a chip antenna with a 50-ohm impedance is recommended. The antenna should be placed at least 10 mm away from the DA14583 to minimize detuning effects.
