DA15-SL-25 - Adam Tech

Description: 15 Position D-Sub Receptacle, Female Sockets Connector , 250 VAC , 3 A , -55 °C ~ 105 °C

Download DA15-SL-25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

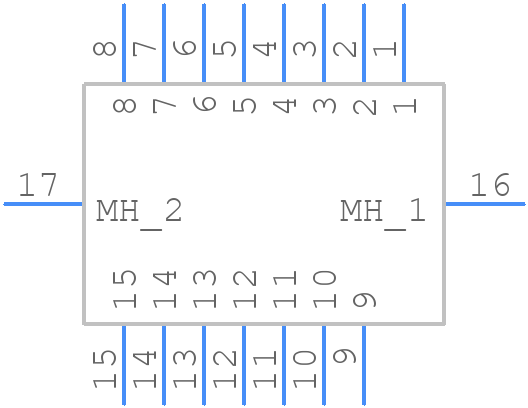

DA15-SL-25 - Adam Tech - PCB symbol
click to zoom
PCB Footprints

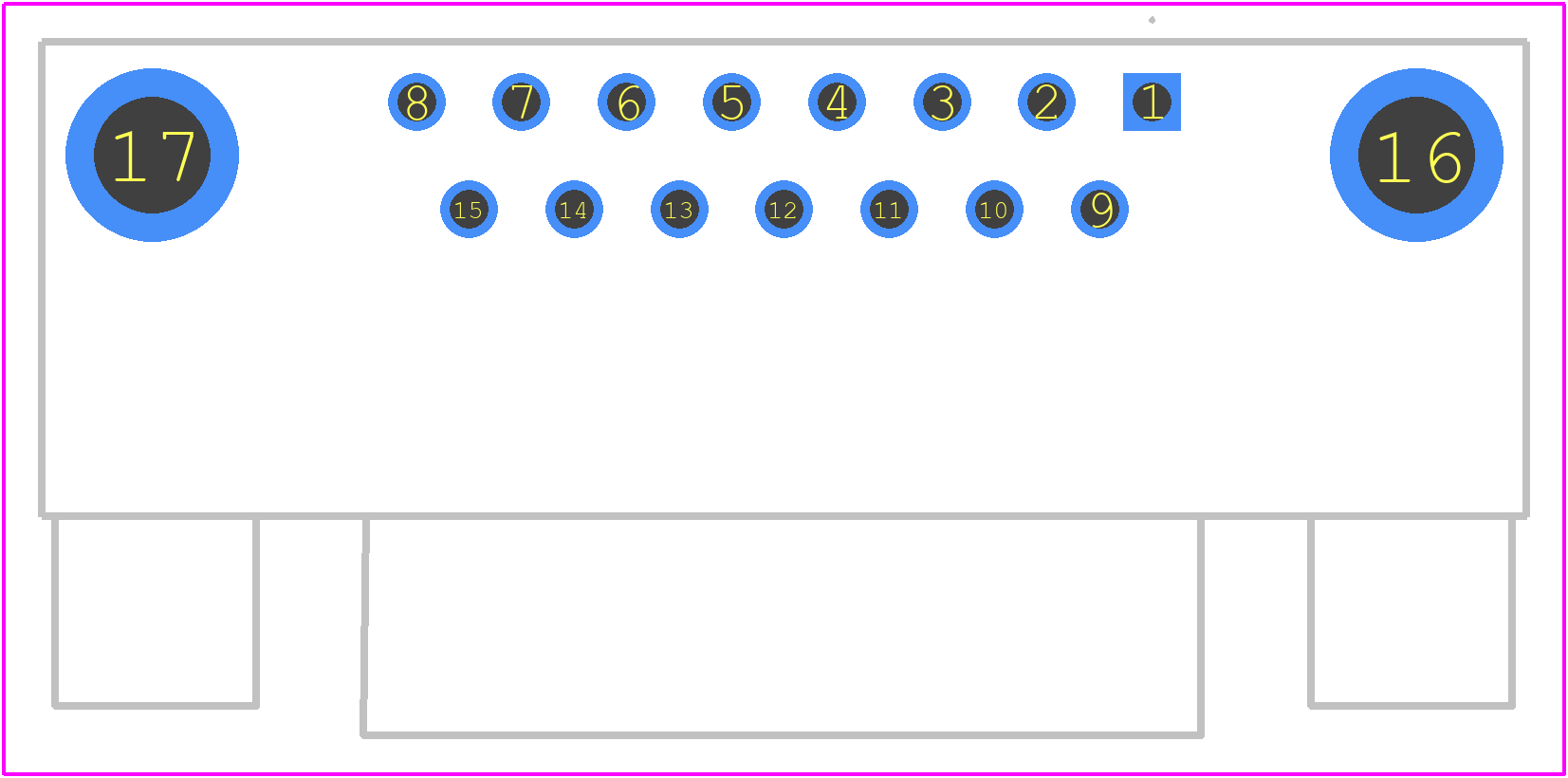

DA15-SL-25 - Adam Tech PCB footprint - Other - Other - DA15-SL-25-1
click to zoom

DA15-SL-25 Details

  • Manufacturer Part Number:

    DA15-SL-25

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Adam Technologies Inc

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL

  • Contact Finish Termination:

    Gold Flash (Au) - with Nickel (Ni) barrier

  • Contact Material:

    PHOSPHOR BRONZE

  • Option:

    GENERAL PURPOSE

DA15-SL-25 Frequently Asked Questions (FAQs)

  • The recommended torque for the DA15-SL-25 connector is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks, and 1.5-3.5 Nm (12-28 in-lbs) for the hex nuts.
  • Yes, the DA15-SL-25 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the DA15-SL-25 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C, and meeting IP67 and IP69K ingress protection standards.
  • The DA15-SL-25 connector has a mating cycle life of 500-1000 cycles, depending on the application and environmental conditions.
  • Yes, the contacts of the DA15-SL-25 connector are gold-plated, with a minimum of 0.76 microns (30 microinches) of gold plating to ensure reliable connections.
