DA15-ST-1-BL - Adam Tech

Description: Conn D-Sub SKT 15 POS 1.385mm Solder ST Thru-Hole 15 Terminal 1 Port Tray

Download DA15-ST-1-BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

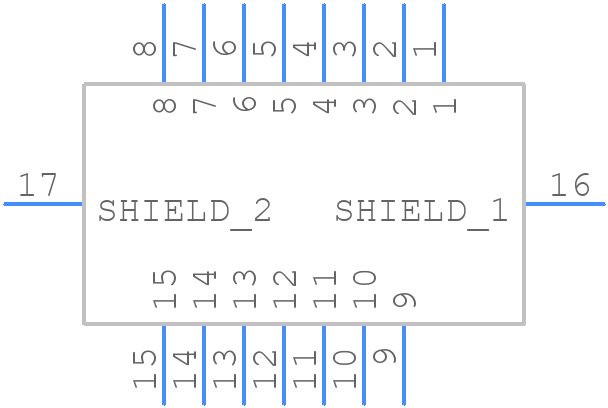

DA15-ST-1-BL - Adam Tech - PCB symbol
click to zoom
PCB Footprints

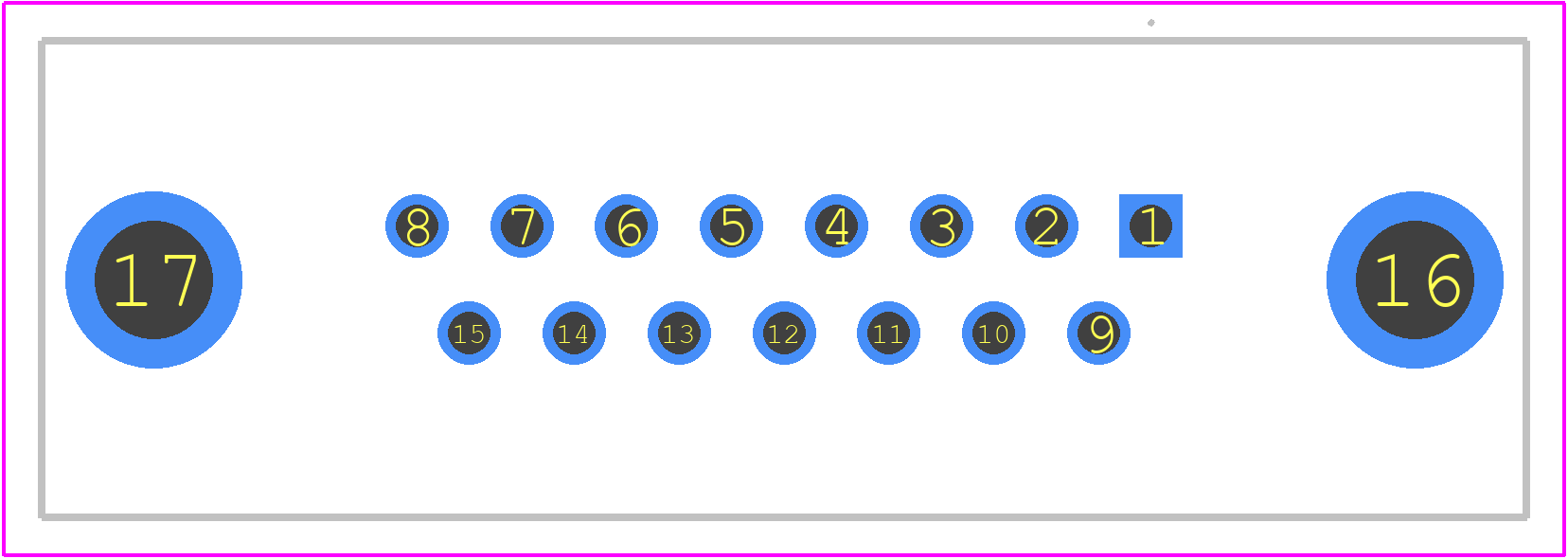

DA15-ST-1-BL - Adam Tech PCB footprint - Other - Other - DA15-ST-1-BL-1
click to zoom
3D Models
DA15-ST-1-BL - Adam Tech - 3D model - Other - DA15-ST-1-BL-1
click to zoom

DA15-ST-1-BL Details

  • Manufacturer Part Number:

    DA15-ST-1-BL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Adam Technologies Inc

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • JESD-609 Code:

    e4

  • Option:

    GENERAL PURPOSE

DA15-ST-1-BL Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
  • Yes, the DA15-ST-1-BL connector is rated IP67, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The operating temperature range of the DA15-ST-1-BL connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the DA15-ST-1-BL connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, transportation, and more.
  • The DA15-ST-1-BL connector is designed to be compatible with other similar connectors that meet the IEC 61076-2-101 standard. However, it's recommended to verify compatibility before using connectors from different manufacturers.
