DA2033-ALD - COILCRAFT

Description: Audio Transformers / Signal Transformers DA2032 Cap Chrgr For Linear LT3750/51

Download DA2033-ALD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

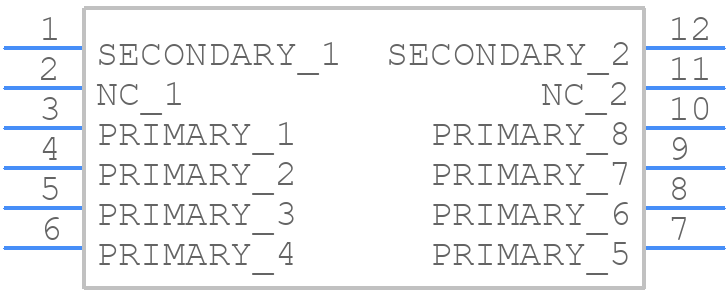

Symbol
DA2033-ALD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
DA2033-ALD - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - DA2033-AL
click to zoom
3D Models
DA2033-ALD - COILCRAFT - 3D model - Small Outline Packages - DA2033-AL
click to zoom

DA2033-ALD Details

  • Manufacturer Part Number:

    DA2033-ALD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.46

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Height:

    9.78 mm

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3 V

  • Length:

    17.4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    4

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Primary Inductance:

    10 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    17 mm

DA2033-ALD Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for the DA2033-ALD is a rectangular pad with a size of 3.3 mm x 2.5 mm, with a 1.3 mm diameter hole in the center for the inductor's lead.
  • The DA2033-ALD has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a thermal pad or heat sink if the inductor will be operating near its maximum current rating.
  • The DA2033-ALD's SRF is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. A rough estimate is around 100-150 MHz.
  • While the DA2033-ALD is suitable for high-frequency applications, its performance may degrade above 50 MHz due to its core material and construction. Consider using a more specialized high-frequency inductor for applications above 100 MHz.
  • Follow proper PCB design and assembly guidelines, ensure the inductor is properly soldered, and consider using a conformal coating to protect the inductor from environmental factors. Also, perform thorough testing and validation to ensure the inductor meets your application's reliability requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA2033-ALD Overview

Use the download button to access the DA2033-ALD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA203, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
