DA2257-ALD - COILCRAFT

Description: Audio Transformers / Signal Transformers DA2257 PoE Trnsfmr For TI LM5071/72

Download DA2257-ALD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

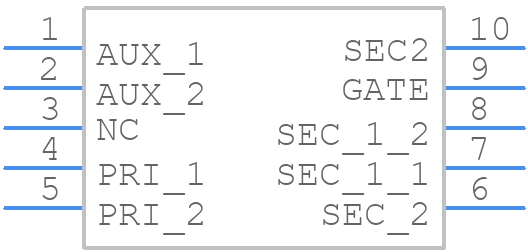

DA2257-ALD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
DA2257-ALD - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - DA2257
click to zoom
3D Models
DA2257-ALD - COILCRAFT - 3D model - Small Outline Packages - DA2257
click to zoom

DA2257-ALD Details

  • Manufacturer Part Number:

    DA2257-ALD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • Application:

    ISOLATION

  • Height:

    12.7 mm

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    14 V

  • Isolation Voltage:

    2000 V

  • Length:

    13.46 mm

  • Load Resistance:

    0.225 Ω

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current 1:

    2.7 A

  • Output Voltage 1:

    3.3 V

  • Output Voltage 2:

    5 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Primary Inductance:

    35 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Matte Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    13 mm
