The recommended land pattern for the DA6X103T0R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
The DA6X103T0R has a high power density, so thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce the thermal resistance. The datasheet provides thermal resistance values to help with thermal design.
The maximum operating temperature range for the DA6X103T0R is -40°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. Consult the datasheet for more information on temperature-related specifications.
The DA6X103T0R is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you may need to take additional measures to ensure the component's reliability. Consult Panasonic's application notes or contact their support team for guidance.
To ensure the DA6X103T0R's reliability in a humid environment, follow proper handling and storage procedures to prevent moisture absorption. Consider using a moisture barrier or conformal coating to protect the component from humidity. Consult the datasheet and Panasonic's application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DA6X103T0R Overview

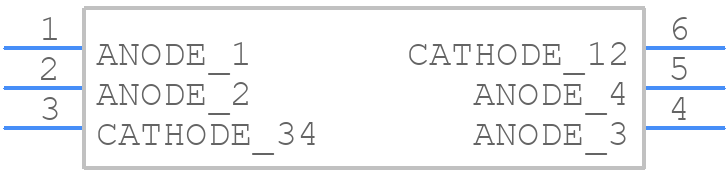

Use the download button to access the DA6X103T0R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA6X1,
or try a keyword search, such as Microwave Mixer Diodes
