DA7280-A footprint, schematic symbol and 3D model by Renesas Electronics

DA7280-A - Renesas Electronics

Description: The DA7280-A high-definition (HD) haptic driver combines custom drive sequences, on- and off-resonance, at up to 1kHz. The DA7280-A can drive both ERM and LRA (narrow and wideband) actuators and track resonance up to 300Hz to drive the most complex click/vibration touch effects in a wide range of applications.The DA7280-A combines very low idle current consumption (360nA) with low-latency trigger inputs to minimize the delay after button presses when an application process is in deep sleep.This product is A

Download DA7280-A Model

Schematic
symbols

PCB
footprints

3D
models

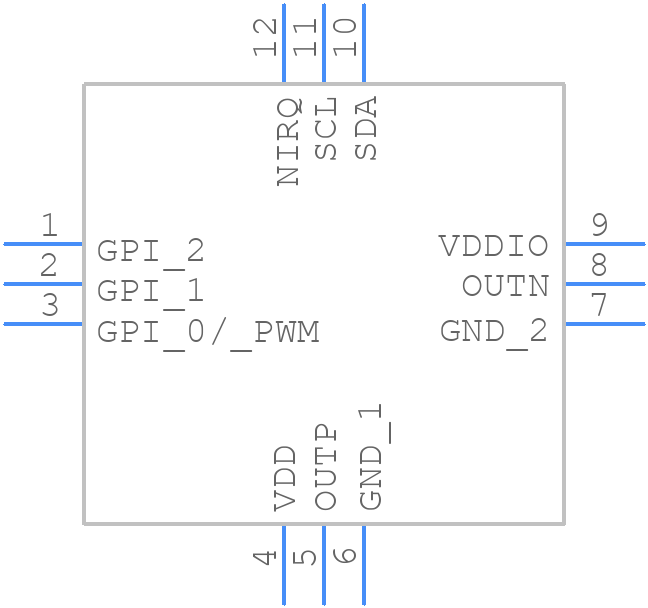

Symbol

click to zoom

PCB Footprints

DA7280-A - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 3X3mm_2022-19

click to zoom

3D Models

DA7280-A - Renesas Electronics - 3D model - Quad Flat No-Lead - QFN 3X3mm_2022-19

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DA7280-A
Part Number DA7280-A
Manufacturer Renesas Electronics
Pin Count 12
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN 3X3mm_2022-19
Released Date Jul 19, 2022
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

DA7280-A Details

Manufacturer Part Number:
DA7280-A
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

DA7280-A Overview

Use the download button to access the DA7280-A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DA728, or try a keyword search, such as Motion Control Electronics
