DA7282-00V42 - Renesas Electronics

Description: The DA7282 ultra-low power haptic driver, combines custom drive sequences, on- and off-resonance, at up to 1kHz. The DA7282 drives both ERM and LRA (narrow and wideband) actuators and track resonance up to 300Hz producing highly complex click/vibration touch effects in a wide range of applications.The DA7282 differs from the DA7280 and DA7281 by providing the capability to go into a full standby mode, lowering current consumption to 5nA.Benefits 20x lower standby current, minimizing the drain on small batte

Download DA7282-00V42 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

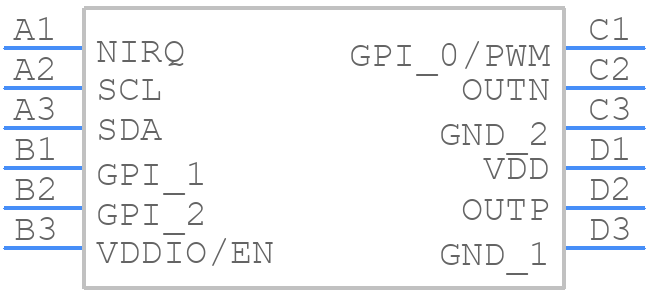

DA7282-00V42 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
DA7282-00V42 - Renesas Electronics PCB footprint - BGA - BGA - WLCSP 1.35 x 1.75
click to zoom
3D Models
DA7282-00V42 - Renesas Electronics - 3D model - BGA - WLCSP 1.35 x 1.75
click to zoom

DA7282-00V42 Details

  • Manufacturer Part Number:

    DA7282-00V42

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • Moisture Sensitivity Level:

    1

DA7282-00V42 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the DA7282-00V42 application note (Document Number: R01AN4393EU0100). It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The DA7282-00V42 output voltage can be configured using the VID[5:0] pins. The voltage settings are described in the datasheet (Table 12). Additionally, Renesas provides a VID code calculator tool to help with the configuration.
  • The DA7282-00V42 can handle a maximum input voltage of 25V, but it is recommended to operate within the specified input voltage range of 4.5V to 20V for optimal performance and reliability.
  • The DA7282-00V42 has a built-in overcurrent protection (OCP) feature. To implement OCP, connect a sense resistor (Rs) between the output voltage and GND, and set the OCP threshold using the OCSET pin. The OCP threshold calculation is described in the datasheet (Equation 1).
  • The thermal derating curve for the DA7282-00V42 is provided in the datasheet (Figure 23). It shows the maximum output current vs. ambient temperature, and can be used to determine the maximum output current at a given temperature.
