Part Image

DA7283-01FVC - Renesas Electronics

Description: The DA7283 ultra-low power haptic driver, combines custom drive sequences, on- and off-resonance, at up to 1kHz. The DA7283 drives both ERM and LRA (narrow and wideband) actuators and track resonance up to 300Hz producing highly complex click/vibration touch effects in a wide range of applications.The DA7283 differs from the DA7280 and DA7281 as it is hardware controlled and is ideal for applications that require a simple buzz or click. It also provides the capability to go into a full standby mode, lowerin

Download DA7283-01FVC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

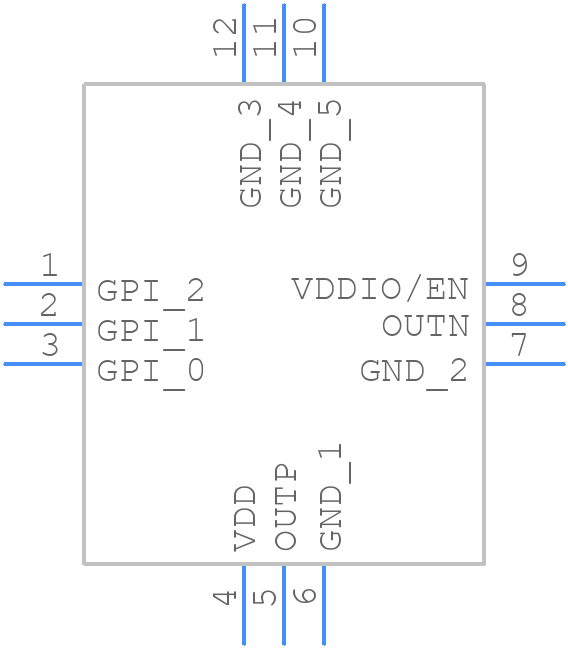

DA7283-01FVC - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
DA7283-01FVC - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 3x3mm
click to zoom
3D Models
DA7283-01FVC - Renesas Electronics - 3D model - Quad Flat No-Lead - QFN 3x3mm
click to zoom

DA7283-01FVC Details

  • Manufacturer Part Number:

    DA7283-01FVC

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-QFN

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA7283-01FVC Overview

Use the download button to access the DA7283-01FVC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA728, or try a keyword search, such as Other Consumer ICs
