Description:The DA9062 is a flexible, scalable system PMIC capable of powering a wide range of multicore SoCs, FPGAs, memory subsystems, and peripherals. Full power tree management and multiple sleep modes result in a power-efficient system solution suitable for infotainment, telematics, and ADAS applications. The device includes four LDOs with programmable output voltages providing up to 300 milliamps and four high-current buck converters providing up to two and a half amps per buck. Any two bucks can be combined i
Renesas provides a recommended PCB layout guide for the DA9062-00AM1, which includes guidelines for component placement, thermal management, and routing. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
The DA9062-00AM1 is a highly configurable device, and Renesas provides a software development kit (SDK) that includes a configuration tool. This tool allows you to customize the device's settings, such as voltage rails, sequencing, and monitoring, to suit your specific application.
While the datasheet provides general information on the output current capabilities, the maximum current rating for each rail depends on various factors, such as the input voltage, output voltage, and thermal conditions. Renesas recommends consulting the device's thermal design guide and performing thermal simulations to determine the maximum current rating for each rail in your specific application.
The DA9062-00AM1 has built-in fault detection and protection features, such as overvoltage, undervoltage, and overcurrent protection. To implement these features, you need to configure the device's registers and interrupts using the SDK. Renesas also provides application notes and examples to help you implement fault detection and protection in your design.
The DA9062-00AM1 is rated for operation up to 105°C, but its performance and reliability may be affected at high temperatures. Renesas recommends consulting the device's thermal design guide and performing thermal simulations to ensure that your design can operate reliably in high-temperature environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DA9062-00AM1 Overview

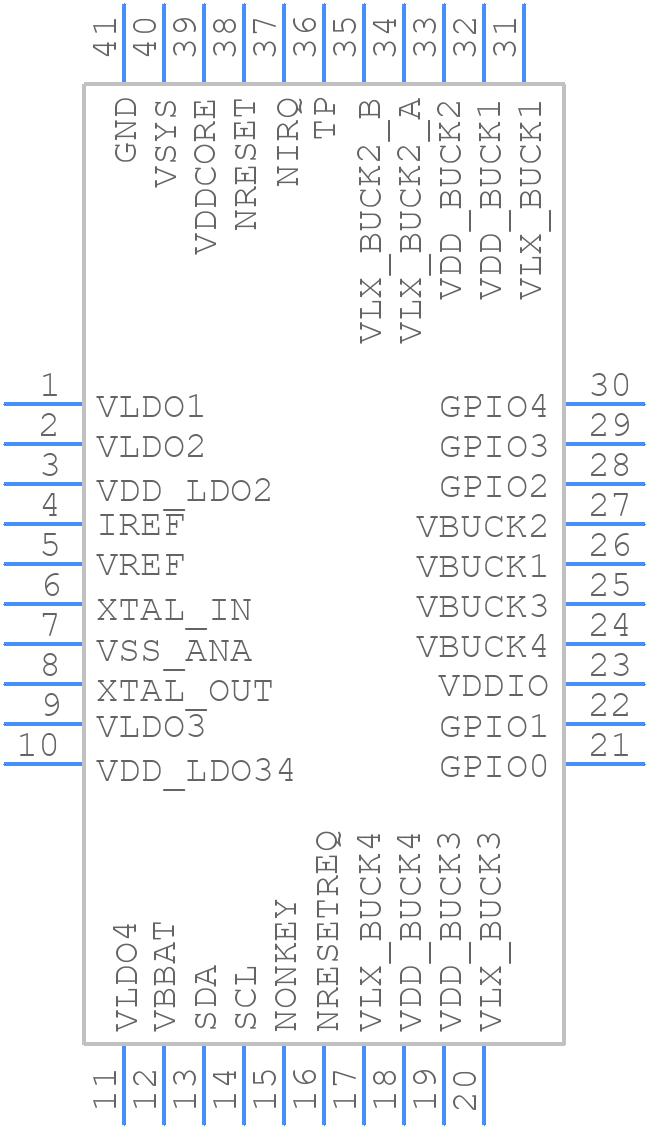

Use the download button to access the DA9062-00AM1 schematic symbol, PCB footprint, and 3D model.
