DA9063-00HO1 - Renesas Electronics

Description: DA9063 is a powerful system PMIC for single-, dual-, and quad-core application processors such as those based on the ARM Cortex-A9TM and Cortex-A15TM architectures.The DA9063 follows a scalable approach of output currents and rails to supply the entire system and is capable of delivering a total of up to 12 A from its six DC-DC buck converters. High efficiency is achieved over a wide load range by automatically selecting Pulse Frequency Modulation (PFM) or Pulse Width Modulation (PWM) modes. All bucks use i

Download DA9063-00HO1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DA9063-00HO1 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

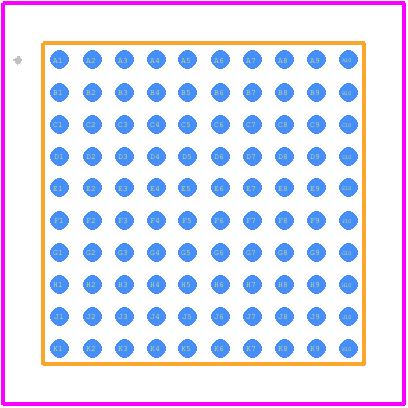

DA9063-00HO1 - Renesas Electronics PCB footprint - Other - Other - DA9063-00HO1-4
click to zoom
3D Models
DA9063-00HO1 - Renesas Electronics - 3D model - Other - DA9063-00HO1-4
click to zoom

DA9063-00HO1 Details

  • Manufacturer Part Number:

    DA9063-00HO1

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    100-BGA

  • Package Description:

    TFBGA-100

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PBGA-B100

  • Length:

    8 mm

  • Number of Channels:

    17

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA100,10X10,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

DA9063-00HO1 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the DA9063-00HO1 application note (Document Number: DA9063-00HO1-AN-001). It includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize noise.
  • The DA9063-00HO1 has a programmable battery profile feature that allows you to configure the charger for different battery chemistries. You can use the DA9063-00HO1 evaluation board software to set the battery profile, or use the I2C interface to program the device directly. Refer to the datasheet and application note for more information.
  • The DA9063-00HO1 can support up to 3A of charging current, but this is dependent on the external component selection and PCB design. Refer to the datasheet and application note for guidance on selecting the correct components and designing the PCB for high-current charging applications.
  • Yes, the DA9063-00HO1 is compatible with USB-C PD applications. It has a built-in USB-C PD controller that can negotiate power delivery up to 100W. However, additional external components and firmware development are required to implement a complete USB-C PD solution.
  • The DA9063-00HO1 has built-in OVP and UVP features that can be enabled through the I2C interface. You can set the OVP and UVP thresholds using the DA9063-00HO1 evaluation board software or by programming the device directly. Refer to the datasheet and application note for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA9063-00HO1 Overview

Use the download button to access the DA9063-00HO1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA906, or try a keyword search, such as Power Management Circuits
