DA9212-AKUU2 footprint, schematic symbol and 3D model by Renesas Electronics

DA9212-AKUU2 - Renesas Electronics

Description: The DA9212 is a synchronous dual step-down converter optimized for the supply of CPUs, GPUs and DDR memory rails in smartphones, tablets, FPGAs and other handheld applications. DA9212 delivers two times 6A output current suitable for the highest performing application processors such as multi-core arrangements of Arm® Cortex®-A15 family.The input voltage range of 2.8V to 5.5V makes it suitable for the use of single-cell Lithium-ion battery applications as well as standard 5V supply or USB power supplies. Th

Download DA9212-AKUU2 Model

Schematic
symbols

PCB
footprints

3D
models

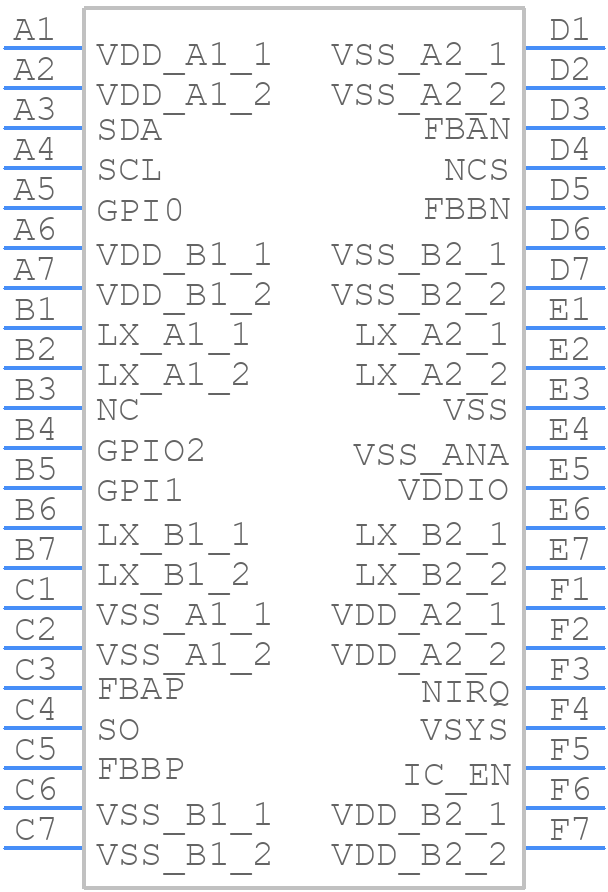

Symbol

click to zoom

PCB Footprints

DA9212-AKUU2 - Renesas Electronics PCB footprint - BGA - BGA - 42-bga

click to zoom

3D Models

DA9212-AKUU2 - Renesas Electronics - 3D model - BGA - 42-bga

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DA9212-AKUU2
Part Number DA9212-AKUU2
Manufacturer Renesas Electronics
Pin Count 42
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 42-bga
Released Date Jul 9, 2022
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

DA9212-AKUU2 Details

Manufacturer Part Number:
DA9212-AKUU2
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

DA9212-AKUU2 Overview

Use the download button to access the DA9212-AKUU2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DA921, or try a keyword search, such as Power Management Circuits
