DAC0802LCMX - Texas Instruments

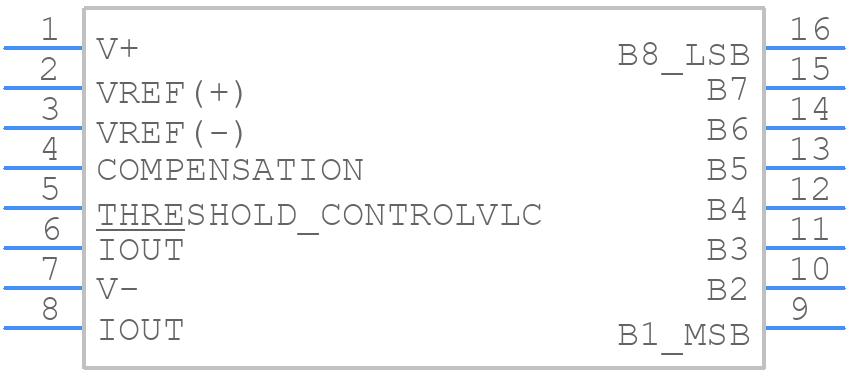

DAC0802LCMX Details

• Manufacturer Part Number:

  DAC0802LCMX

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.40

• Date Of Intro:

  1999-06-16

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog Output Voltage-Max:

  18 V

• Analog Output Voltage-Min:

  -10 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  OFFSET BINARY

• Input Format:

  PARALLEL, 8 BITS

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e0

• Length:

  9.9 mm

• Linearity Error-Max (EL):

  0.1%

• Moisture Sensitivity Level:

  1

• Negative Supply Voltage-Nom:

  -15 V

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Sample Rate:

  6.6 MHz

• Seated Height-Max:

  1.75 mm

• Settling Time-Max:

  0.1 µs

• Settling Time-Nom (tstl):

  0.1 µs

• Supply Current-Max:

  3.8 mA

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  3.9 mm
