DAC101C081CISD/NOPB - Texas Instruments

Description: 10-Bit Micro Power Digital-to-Analog Converter with an I2C-Compatible Interface

Download DAC101C081CISD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

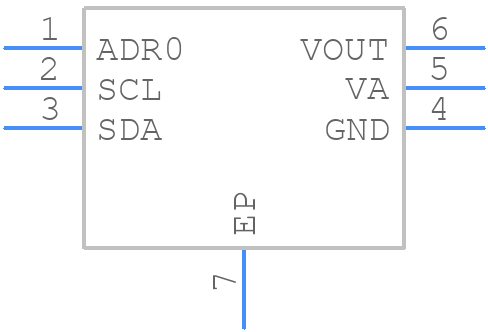

DAC101C081CISD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC101C081CISD/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGF0006A
click to zoom
3D Models
DAC101C081CISD/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGF0006A
click to zoom

DAC101C081CISD/NOPB Details

  • Manufacturer Part Number:

    DAC101C081CISD/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    DAC 10BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.1,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.18 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.214 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.2 mm

DAC101C081CISD/NOPB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to use a low-noise, low-impedance voltage reference (VREF) and to decouple the VREF pin with a capacitor. Additionally, use a stable clock signal and ensure the DAC is operated within its specified temperature range.
  • The DAC101C081 supports clock frequencies up to 40 MHz. However, the maximum clock frequency may vary depending on the specific application and system constraints.
  • To ensure proper synchronization and data alignment, use a common clock signal for all devices, and align the data transmission with the clock signal. Additionally, consider using a synchronization signal or a data-ready signal to ensure proper data alignment.
  • To minimize noise and ensure signal integrity, use a multi-layer PCB with a solid ground plane, and route the analog and digital signals separately. Keep the analog signals away from the digital signals, and use shielding or guard rings to minimize noise coupling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC101C081CISD/NOPB Overview

Use the download button to access the DAC101C081CISD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC10, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
