DAC104S085CIMM - Texas Instruments

Description: 10B 4ch DAC w/R-to-R O/P,DAC104S085CIMM

Download DAC104S085CIMM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

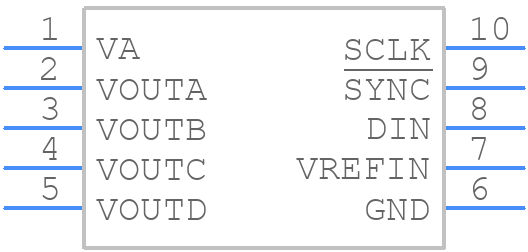

DAC104S085CIMM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC104S085CIMM - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
DAC104S085CIMM - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

DAC104S085CIMM Details

  • Manufacturer Part Number:

    DAC104S085CIMM

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.09 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    4.5 µs

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

DAC104S085CIMM Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage settling time of the DAC104S085CIMM is typically around 10-15 μs. To ensure accurate output voltage, it's recommended to wait for at least 20-30 μs after updating the input code before taking a measurement or using the output voltage.
  • The DAC104S085CIMM's performance is affected by temperature, with changes in output voltage, gain error, and offset error. The device is specified to operate over a temperature range of -40°C to 125°C, and the datasheet provides detailed information on the temperature coefficients of these parameters.
  • To minimize noise and interference, it's recommended to use a low-noise power supply, decouple the power pins with capacitors, and use a ground plane to reduce electromagnetic interference. Additionally, consider using a shielded cable or a twisted pair to connect the digital inputs to the DAC.
  • The maximum output current of the DAC104S085CIMM is 5 mA. Exceeding this current limit can cause damage to the device or affect its performance. Ensure that the output is properly terminated and that the load current is within the specified limit.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC104S085CIMM Overview

Use the download button to access the DAC104S085CIMM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC10, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
