DAC104S085CISDX/NOPB - Texas Instruments

Description: 10-Bit Micro Power QUAD Digital-to-Analog Converter with Rail-to-Rail Output

Download DAC104S085CISDX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

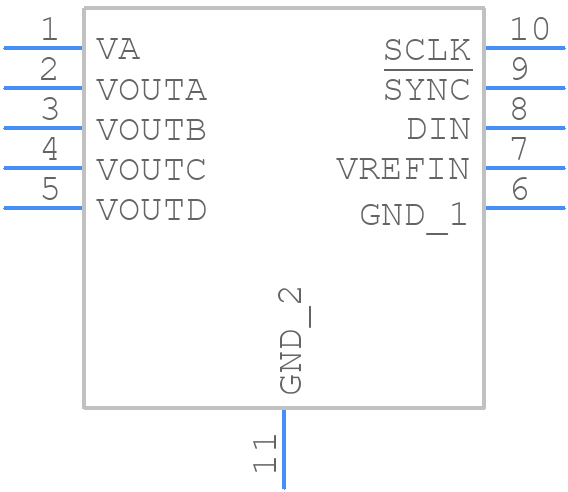

DAC104S085CISDX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC104S085CISDX/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSC0010A
click to zoom
3D Models
DAC104S085CISDX/NOPB - Texas Instruments - 3D model - Small Outline No-lead - DSC0010A
click to zoom

DAC104S085CISDX/NOPB Details

  • Manufacturer Part Number:

    DAC104S085CISDX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2.5 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    6 µs

  • Settling Time-Nom (tstl):

    6 µs

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC104S085CISDX/NOPB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the digital supply (VDD) before the analog supply (VREF). This ensures that the internal circuitry is properly initialized and prevents any potential latch-up or damage to the device.
  • To ensure accurate output voltage, it is essential to use a low-noise, low-impedance reference voltage source (VREF) and to decouple the analog supply (VREF) and digital supply (VDD) with adequate bypass capacitors. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The maximum output current of the DAC104S085 is 5mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • To handle output glitches during power-up or code changes, it is recommended to use an external output buffer or op-amp with a slew-rate limiting capacitor to slow down the output transition. Additionally, the DAC output can be synchronized with a clock signal to minimize glitches.
  • The recommended layout and routing for the DAC104S085 involves keeping the analog and digital signal paths separate, using a solid ground plane, and minimizing the length of the output trace to reduce noise and interference. Additionally, the reference voltage (VREF) and analog supply (VDD) should be routed close to the device to minimize noise and voltage drops.
