The recommended power-up sequence is to power up the analog supply (VCCA) before the digital supply (VCCD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up or damage to the device.
To ensure accurate output voltage, it is recommended to use a low-impedance reference voltage source, such as a voltage reference IC, and to decouple the reference voltage pin (VREF) with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
The maximum output current of the DAC108S085 is 5mA. Exceeding this current limit can cause the output voltage to droop or the device to overheat. It is recommended to use an external buffer or amplifier if higher output currents are required.
The DAC108S085's digital interface is a 3-wire serial interface (SCLK, SDIN, and SYNC). To handle the digital interface, ensure that the clock frequency is within the specified range (10MHz to 50MHz), and that the data is transmitted in the correct format (MSB-first, 16-bit word). Additionally, ensure that the SYNC pin is properly controlled to avoid data corruption.
The thermal impedance of the DAC108S085 package (QFN-16) is typically around 30°C/W. This means that for every watt of power dissipated, the junction temperature will rise by 30°C above the ambient temperature. Proper thermal design and heat sinking are essential to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC108S085CISQX/NOPB Overview

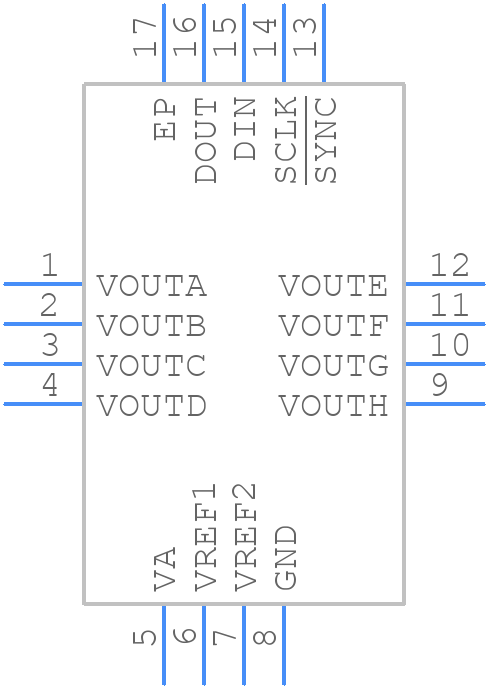

Use the download button to access the DAC108S085CISQX/NOPB schematic symbol, PCB footprint, and 3D model.
