DAC11001APFBR - Texas Instruments

Description: DAC 1-CH R-2R 20-bit 48-Pin TQFP T/R DACx1001 20-Bit, 18-Bit, and 16-Bit, Low-Noise, Ultra-Low Harmonic Distortion, FastSettling, High-Voltage Output, Digital-to-Analog Converters (DACs)

Download DAC11001APFBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

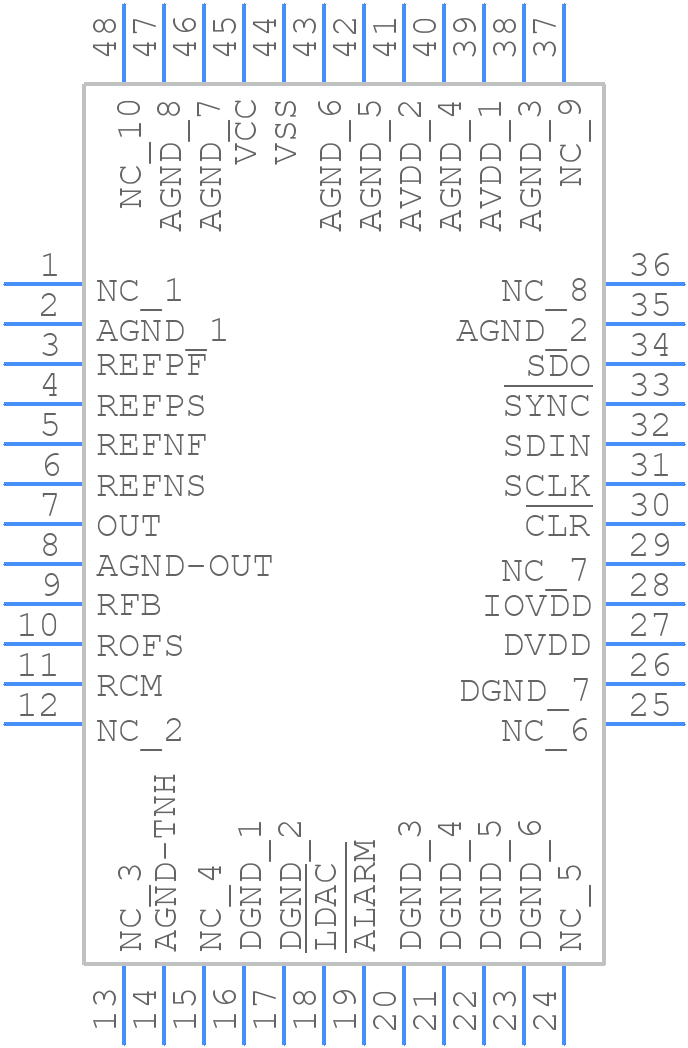

DAC11001APFBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC11001APFBR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48) PLASTIC QUAD FLATPACK
click to zoom
3D Models
DAC11001APFBR - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48) PLASTIC QUAD FLATPACK
click to zoom

DAC11001APFBR Details

  • Manufacturer Part Number:

    DAC11001APFBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2019-11-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0004%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.4 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    1 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DAC11001APFBR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage settling time can be minimized by using a capacitor (e.g., 10nF) between the output pin and GND. This helps to filter out high-frequency noise and ensures a stable output voltage.
  • The maximum output current of the DAC11001APFBR is 5mA. Exceeding this limit may cause the device to overheat or malfunction.
  • To ensure accurate voltage output, the external reference voltage should be stable and noise-free. Additionally, the reference voltage should be within the specified range (1.2V to 3.3V) and should not exceed the maximum rating (3.6V).
  • The DAC11001APFBR's performance may be affected by temperature changes. The device's output voltage, gain error, and offset error may vary with temperature. It is recommended to consult the datasheet for detailed temperature-related specifications.
