DAC11001BPFBR - Texas Instruments

Description: Digital to Analog Converters - DAC High-grade, 20-bit, monotonic DAC with ultra-low noise, low glitch and exceptional THD performance 48-TQFP -40 to 125

Download DAC11001BPFBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

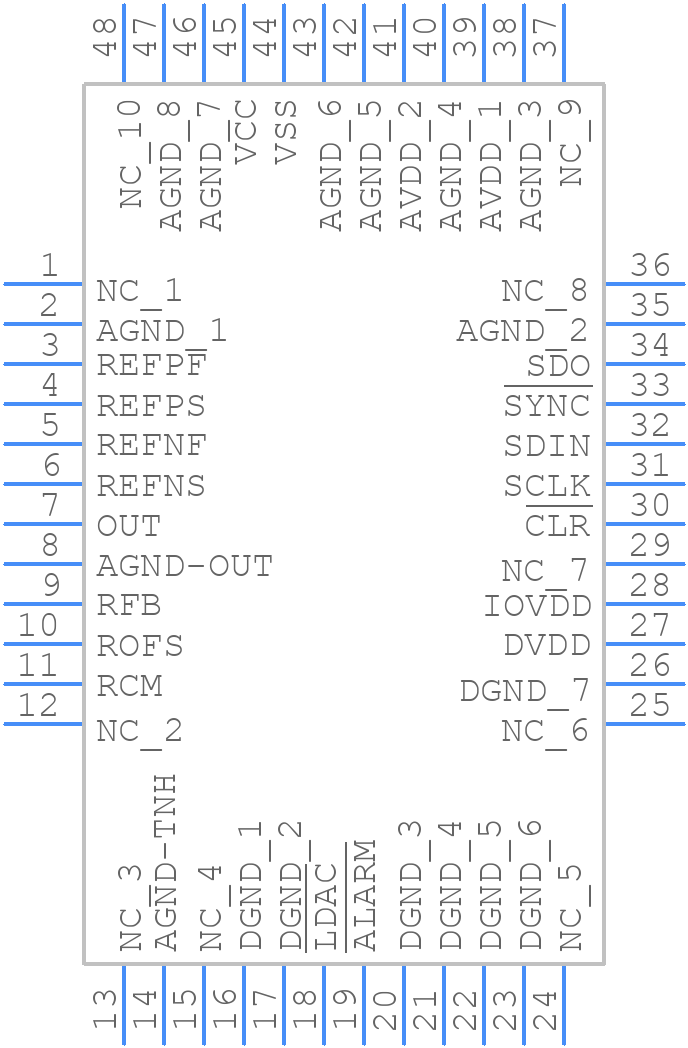

DAC11001BPFBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC11001BPFBR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48)_2023
click to zoom
3D Models
DAC11001BPFBR - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48)_2023
click to zoom

DAC11001BPFBR Details

  • Manufacturer Part Number:

    DAC11001BPFBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    15 V

  • Analog Output Voltage-Min:

    -15 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0000953674%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DAC11001BPFBR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage range of the DAC11001BPFBR is dependent on the VREF input. Ensure that the output voltage range is within the specified range of 0 to VREF to avoid output stage saturation and ensure accurate DAC operation.
  • Clock jitter can affect the DAC's performance by introducing noise and distortion in the output signal. It is recommended to use a low-jitter clock source and to follow proper PCB layout and design practices to minimize clock jitter.
  • The output filter of the DAC11001BPFBR is a 3rd-order Butterworth filter. To optimize the filter for your specific application, you can adjust the values of the external resistors and capacitors to achieve the desired cutoff frequency and filter response.
  • To minimize digital noise and ensure reliable operation, it is recommended to use a separate digital ground plane, keep digital traces short and away from analog signals, and use a low-impedance clock source.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC11001BPFBR Overview

Use the download button to access the DAC11001BPFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC11, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
