The maximum output current of the DAC121S101 is 5mA. However, it's recommended to limit the output current to 3mA for optimal performance and to prevent overheating.
To ensure monotonicity, it's recommended to use a 0.1uF capacitor between the output pin and GND, and to use a 1kΩ resistor in series with the output pin. Additionally, the input code should be incremented or decremented in a monotonic sequence.
The settling time of the DAC121S101 is typically 10μs, but it can vary depending on the output voltage, load capacitance, and other factors. It's recommended to consult the datasheet and application notes for more information.
Yes, the DAC121S101 can be used with a 5V power supply. However, the output voltage range will be limited to 0-4.096V. If a 5V output is required, an external amplifier or voltage doubler may be necessary.
To reduce noise and glitches, it's recommended to use a low-pass filter (e.g. RC filter) at the output, and to ensure that the power supply is well-regulated and decoupled. Additionally, using a clock frequency that is a multiple of the DAC's update rate can help reduce noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC121S101WGMPR Overview

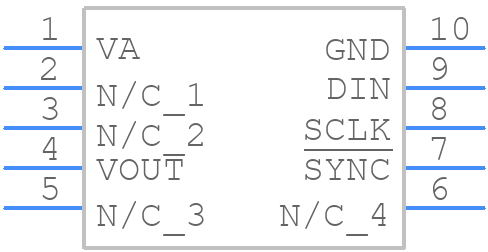

Use the download button to access the DAC121S101WGMPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC12,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
