The maximum output current of the DAC1221E is 5mA. This is not explicitly stated in the datasheet, but it can be inferred from the output impedance and voltage range specifications.
To ensure monotonicity of the DAC output, it is recommended to use a high-quality external voltage reference and to follow proper PCB layout and decoupling practices. Additionally, the DAC1221E has a built-in monotonicity correction feature that can be enabled by setting the appropriate register bits.
The settling time of the DAC1221E is typically around 10-15 microseconds, but this can vary depending on the output voltage range, load capacitance, and other factors. It is recommended to consult the datasheet and application notes for more detailed information.
Yes, the DAC1221E can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This can be useful in applications where the output voltage needs to track changes in the reference voltage. However, it is important to ensure that the reference voltage is stable and well-regulated to maintain accuracy.
The DAC1221E has a built-in power-on reset (POR) circuit that resets the device to its default state when the power supply voltage is applied. To handle the POR, it is recommended to ensure that the power supply voltage is stable and well-regulated, and to add external circuitry to hold the device in reset until the power supply is stable.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC1221E Overview

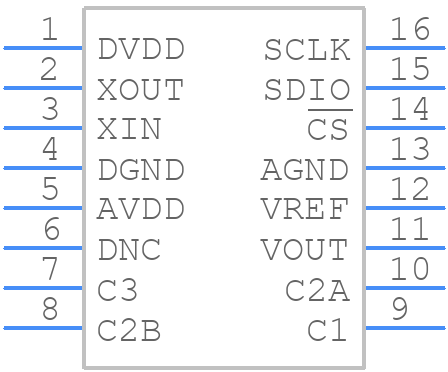

Use the download button to access the DAC1221E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC12,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
