DAC122S085CIMM - Texas Instruments

Description: 12B 2ch DAC w/R-to-R O/P,DAC122S085CIMM

Download DAC122S085CIMM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

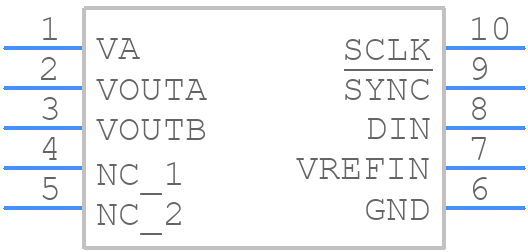

DAC122S085CIMM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC122S085CIMM - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
DAC122S085CIMM - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

DAC122S085CIMM Details

  • Manufacturer Part Number:

    DAC122S085CIMM

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2.5 MHz

  • Seated Height-Max:

    1.09 mm

  • Settling Time-Max:

    8.5 µs

  • Settling Time-Nom (tstl):

    8.5 µs

  • Supply Current-Max:

    0.41 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

DAC122S085CIMM Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage settling time of the DAC122S085CIMM is typically around 10-15 μs. To ensure accurate readings, it's recommended to wait for at least 20-30 μs after a code change before taking a measurement.
  • The DAC122S085CIMM's performance is affected by temperature, with a typical temperature coefficient of ±1 ppm/°C for the output voltage. This means that the output voltage may drift by ±1 mV/°C. It's essential to consider this in high-precision applications.
  • Yes, the DAC122S085CIMM can be used in a ratiometric configuration, where the reference voltage (VREF) is also used as the supply voltage (VDD). This can simplify the design and reduce the number of components required.
  • To minimize noise and glitches, it's recommended to use a low-pass filter on the output, such as a 1 kΩ resistor and a 10 nF capacitor. Additionally, ensure that the digital inputs are properly terminated and that the device is operated within its recommended operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC122S085CIMM Overview

Use the download button to access the DAC122S085CIMM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC12, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments
