The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly biased and that the DAC outputs are stable.
The output voltage range of the DAC124S085CIMM is dependent on the VREF input. The output voltage range is 0 to VREF. To achieve a specific output voltage range, adjust the VREF input accordingly. For example, to get a 0 to 5V output range, set VREF to 5V.
The settling time of the DAC124S085CIMM is typically around 10-15 μs, but it can vary depending on the output load, capacitance, and the specific application. It's recommended to consult the datasheet and application notes for more information.
To reduce noise and glitches on the output of the DAC124S085CIMM, use a low-pass filter, such as an RC filter, to filter out high-frequency noise. Additionally, ensure that the digital inputs are properly synchronized and that the clock signal is clean and stable.
The maximum clock frequency that the DAC124S085CIMM can handle is 40 MHz. However, it's recommended to consult the datasheet and application notes for specific guidance on clock frequency and timing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC124S085CIMM Overview

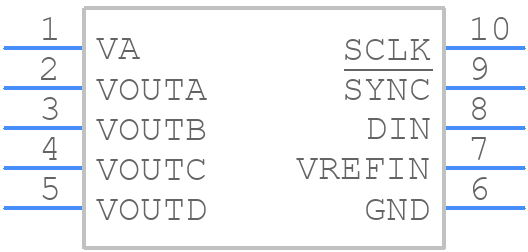

Use the download button to access the DAC124S085CIMM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC12,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
