DAC161P997CISQX/NOPB - Texas Instruments

Description: Single-Wire 16-bit DAC for 4-20mA Loops

Download DAC161P997CISQX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

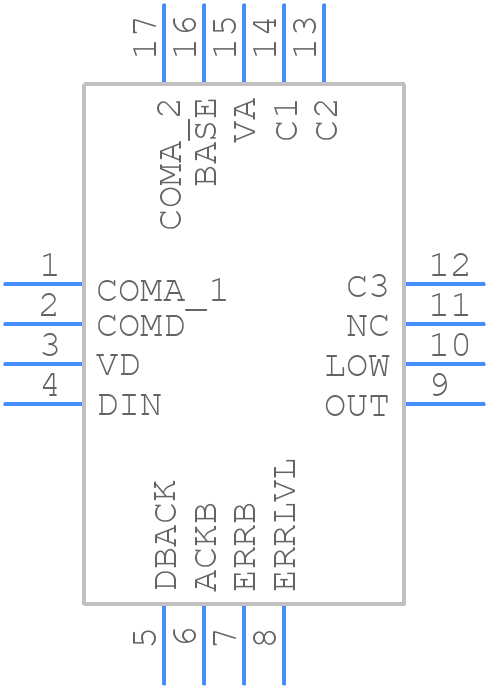

DAC161P997CISQX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC161P997CISQX/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGH0016A
click to zoom
3D Models
DAC161P997CISQX/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RGH0016A
click to zoom

DAC161P997CISQX/NOPB Details

  • Manufacturer Part Number:

    DAC161P997CISQX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.005%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    0.115 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DAC161P997CISQX/NOPB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supply (DVDD). This ensures proper device operation and prevents latch-up.
  • To ensure accurate voltage output, it is essential to use a low-noise, low-impedance voltage reference, and to decouple the analog and digital supplies properly. Additionally, ensure that the output load is within the recommended range.
  • The maximum output current of the DAC161P997 is 5 mA. Exceeding this current may cause damage to the device or affect its accuracy.
  • Yes, the DAC161P997 can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This can be useful in applications where the output voltage needs to track changes in the reference voltage.
  • The DAC161P997 has a 16-bit parallel digital interface. Ensure that the digital signals are properly terminated, and that the clock frequency is within the recommended range (up to 50 MHz). Also, ensure that the digital supply (DVDD) is properly decoupled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC161P997CISQX/NOPB Overview

Use the download button to access the DAC161P997CISQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC16, or try a keyword search, such as Other Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
