DAC161S997RGHR - Texas Instruments

Description: 16-Bit Precision DAC With Internal Reference and 4mA-to-20mA Current Loop Drive

Download DAC161S997RGHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

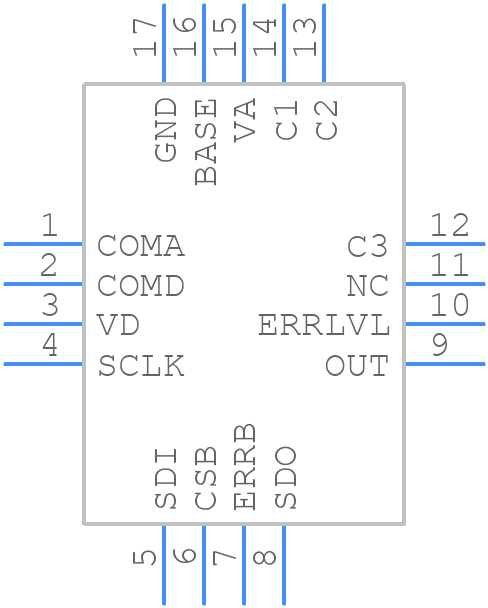

DAC161S997RGHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC161S997RGHR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DAC161S997RGHR
click to zoom
3D Models
DAC161S997RGHR - Texas Instruments - 3D model - Quad Flat No-Lead - DAC161S997RGHR
click to zoom

DAC161S997RGHR Details

  • Manufacturer Part Number:

    DAC161S997RGHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.125 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DAC161S997RGHR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents latch-up.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise voltage reference (VREF) and to decouple the power supply lines with capacitors. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The maximum output current of the DAC161S997RGHR is 5 mA. Exceeding this current may cause the output voltage to droop or the device to overheat.
  • The digital inputs of the DAC161S997RGHR are CMOS-compatible and should be driven with a logic signal that meets the VIH and VIL specifications. It is recommended to use a series resistor to limit the input current and prevent damage to the device.
  • The thermal impedance of the DAC161S997RGHR package (RHR package) is approximately 45°C/W. This value can be used to estimate the junction temperature of the device under different operating conditions.
