The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD) and then the clock signal. This ensures proper device operation and prevents potential latch-up conditions.
To optimize the DAC3282's performance, consider the following: use a low-noise power supply, minimize digital noise coupling, use a high-quality clock source, and optimize the output stage for the specific load impedance. Additionally, consider using the device's built-in calibration features and adjusting the output voltage range to minimize distortion.
The DAC3282 supports clock frequencies up to 1.5 GHz, but the maximum frequency may vary depending on the specific application and output configuration. It's essential to consult the datasheet and application notes for specific guidance on clock frequency selection.
The DAC3282's output current and voltage limitations must be considered to prevent device damage. Ensure that the output current does not exceed the maximum rating (typically 20 mA), and the output voltage does not exceed the maximum rating (typically 1.2 V). Use external buffering or amplification if necessary to meet the specific application requirements.
The DAC3282's internal calibration features, such as offset and gain calibration, help to improve the device's overall performance and accuracy. These features can be used to compensate for internal device variations, temperature effects, and other sources of error, resulting in improved dynamic range and signal-to-noise ratio.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DAC3282IRGZT Overview

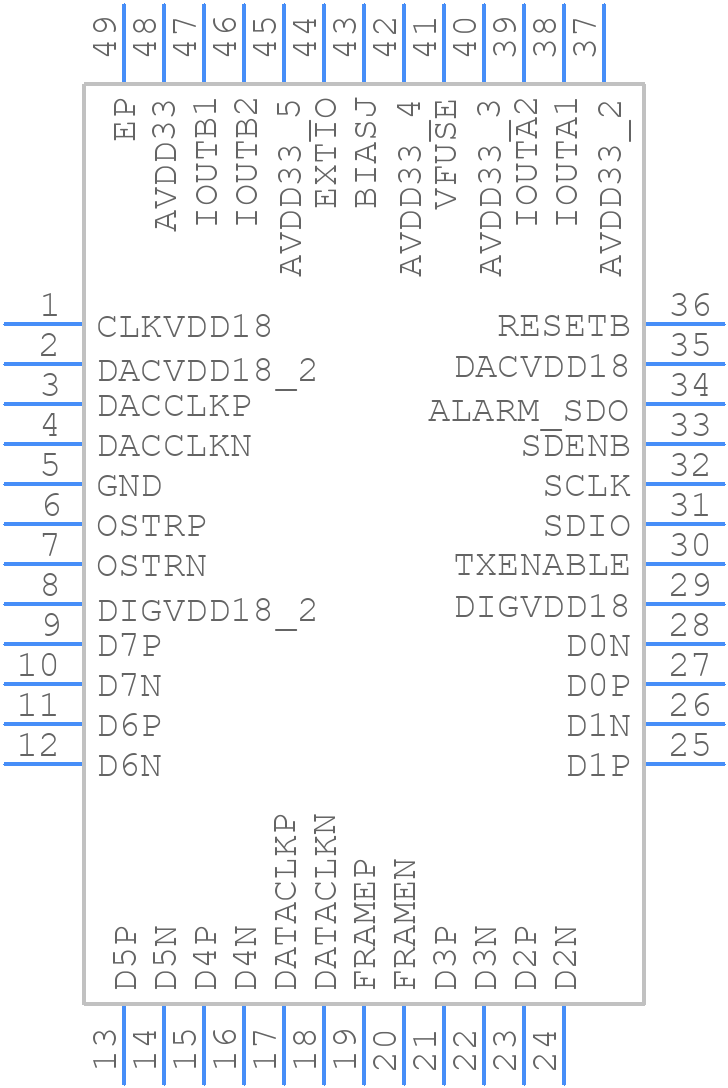

Use the download button to access the DAC3282IRGZT schematic symbol, PCB footprint, and 3D model.
