The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD), and then the clock signal. This ensures proper initialization and prevents damage to the device.
To optimize performance, use a low-noise power supply, decouple the analog and digital supplies, and use a high-quality clock source. Additionally, ensure proper PCB layout and grounding, and consider using a dedicated analog ground plane.
The DAC3484IZAY supports clock frequencies up to 1.5 GHz, but the maximum frequency may vary depending on the specific application and system requirements. Consult the datasheet and application notes for more information.
To implement the DAC3484IZAY in a multi-channel system, use a separate DAC for each channel, and ensure proper synchronization and clocking between channels. Consider using a clock distribution network and a common reference clock to maintain synchronization.
The typical settling time for the DAC3484IZAY is around 10-15 ns, but this may vary depending on the specific application, output load, and clock frequency. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC3484IZAY Overview

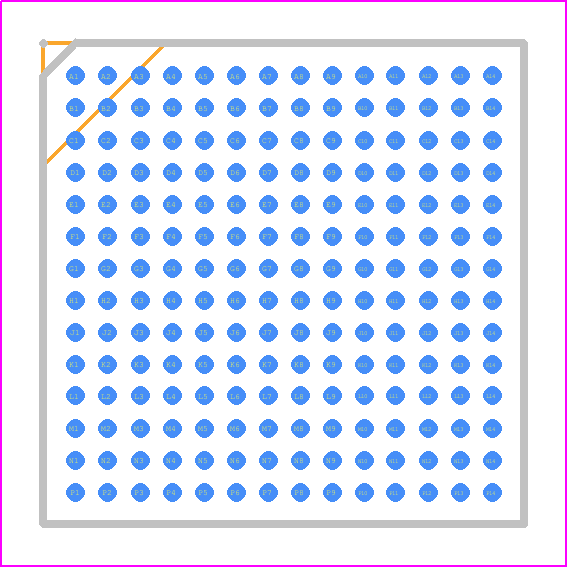

Use the download button to access the DAC3484IZAY schematic symbol, PCB footprint, and 3D model.
