DAC39RFS10EFACK - Texas Instruments

Description: Digital to Analog Converters - DAC EF 16-BIT 1-CH 10.24-GSPS 12-GHZ RF DAC

Download DAC39RFS10EFACK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DAC39RFS10EFACK - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

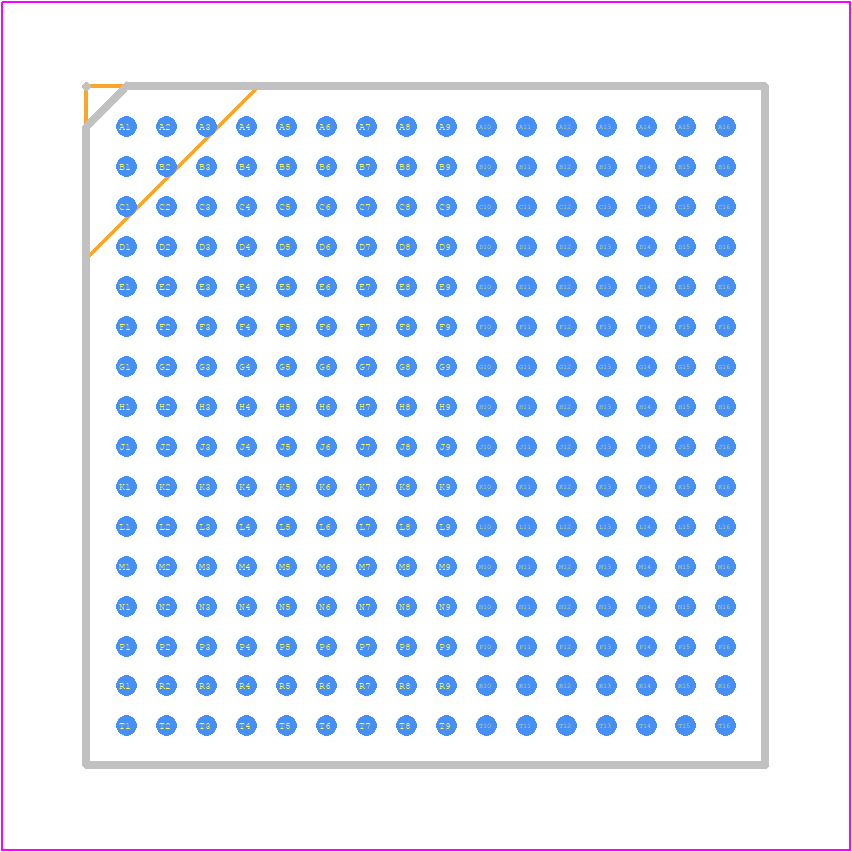

DAC39RFS10EFACK - Texas Instruments PCB footprint - BGA - BGA - FCBGA - 2.78 mm max height
click to zoom
3D Models
DAC39RFS10EFACK - Texas Instruments - 3D model - BGA - FCBGA - 2.78 mm max height
click to zoom

DAC39RFS10EFACK Details

  • Manufacturer Part Number:

    DAC39RFS10EFACK

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.39 V

  • Analog Output Voltage-Min:

    1.21 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XBGA-B256

  • Length:

    17 mm

  • Linearity Error-Max (EL):

    0.013732%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -1.8 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA256,16X16,39

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    20480 MHz

  • Seated Height-Max:

    2.78 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

DAC39RFS10EFACK Frequently Asked Questions (FAQs)

  • The optimal clock frequency for the DAC39RFS10EFACK is between 100 MHz to 1.5 GHz. However, the device can operate at clock frequencies up to 2.5 GHz with reduced performance.
  • The output of the DAC39RFS10EFACK should be terminated with a 50-ohm load to ensure maximum performance and minimize reflections. A DC-blocking capacitor and a series resistor can also be used to improve output stability.
  • The recommended power-up sequence for the DAC39RFS10EFACK is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps prevent latch-up and ensures proper device operation.
  • During power-down, the DAC39RFS10EFACK's output current can be significant. To prevent damage, it's recommended to use a load resistor or a switch to disconnect the output from the load during power-down.
  • The maximum operating temperature range for the DAC39RFS10EFACK is -40°C to 85°C. However, the device's performance may degrade at temperatures above 70°C.
