DAC53204RTER - Texas Instruments

Description: Digital to Analog Converters - DAC Four-channel, 10-bit, VOUT and IOUT smart DAC with I C, SPI and Hi-Z out during power off

Download DAC53204RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

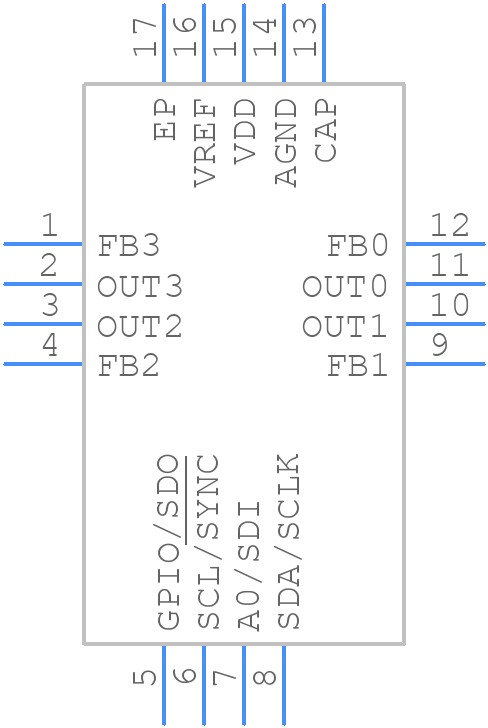

DAC53204RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC53204RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
DAC53204RTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

DAC53204RTER Details

  • Manufacturer Part Number:

    DAC53204RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    DAC 10BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.09765625%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    20 µs

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

DAC53204RTER Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage settling time of the DAC53204RTER is typically around 10-15 μs. To ensure accurate readings, it's recommended to wait for at least 20-30 μs after updating the DAC register before taking a measurement.
  • The maximum output current of the DAC53204RTER is 5 mA. Exceeding this current limit may cause damage to the device or affect its accuracy.
  • A 10-100 nF ceramic capacitor can be used to bypass the voltage reference pin (VREF) to ground. This helps to filter out noise and improve the overall performance of the DAC.
  • To minimize noise and ensure accurate operation, it's recommended to keep the analog and digital signal traces separate, use a solid ground plane, and place the DAC close to the voltage reference and output load.
