DAC53608RTER - Texas Instruments

Description: DAC 8-CH Resistor-String 10-bit 16-Pin WQFN EP T/R

Download DAC53608RTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

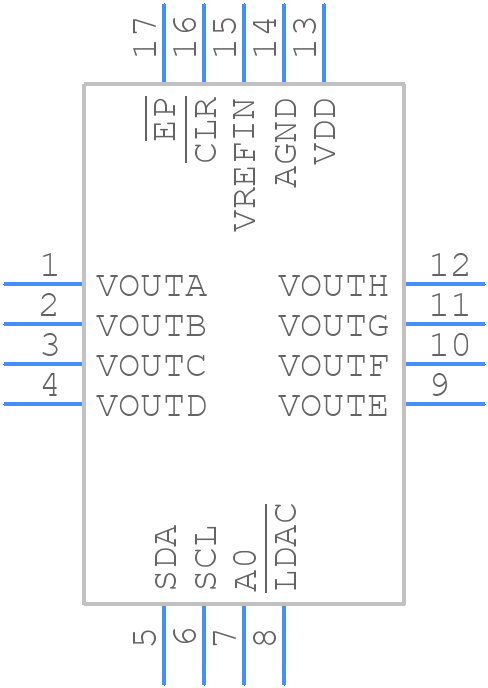

Symbol
DAC53608RTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC53608RTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16pin qfn-+-+-
click to zoom
3D Models
DAC53608RTER - Texas Instruments - 3D model - Quad Flat No-Lead - 16pin qfn-+-+-
click to zoom

DAC53608RTER Details

  • Manufacturer Part Number:

    DAC53608RTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC53608RTER Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply (VCC). This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to use a high-quality voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The maximum output current capability of the DAC53608RTER is 10 mA per channel. However, it is recommended to limit the output current to 5 mA per channel to ensure reliable operation and to prevent overheating.
  • To implement a bipolar output voltage range, you can use an external op-amp to invert the output voltage of one of the channels. This allows you to generate a bipolar output voltage range, such as ±5 V or ±10 V, depending on the application requirements.
  • The settling time of the DAC53608RTER is typically around 10 μs to 20 μs, depending on the output voltage range and the load capacitance. This settling time should be taken into account when designing the system, especially in applications where fast settling times are critical, such as in control systems or data acquisition systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC53608RTER Overview

Use the download button to access the DAC53608RTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC53, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
