DAC53701DSGR - Texas Instruments

Description: Digital to Analog Converters - DAC Single-channel output voltage, 10-bit, smart DAC with GPIO trigger and function generator 8-WSON -40 to 125

Download DAC53701DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

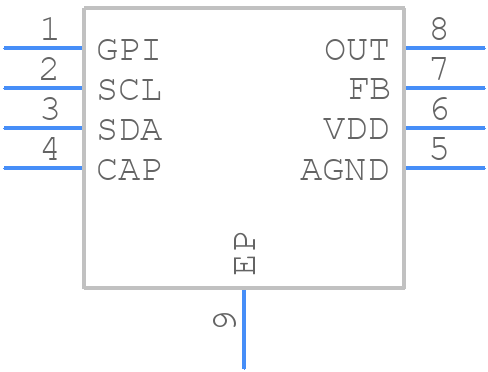

DAC53701DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC53701DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
DAC53701DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

DAC53701DSGR Details

  • Manufacturer Part Number:

    DAC53701DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.097656%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.025 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    0.55 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DAC53701DSGR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply (VCC). This ensures that the internal voltage regulators are powered up correctly.
  • The output voltage settling time during power-up can be handled by adding a capacitor (typically 10nF to 100nF) between the output pin and GND. This helps to filter out any noise and ensures a smooth output voltage transition.
  • The maximum output current capability of the DAC53701 is 25mA. However, it's recommended to limit the output current to 10mA to ensure reliable operation and to prevent overheating.
  • A voltage reference bypass capacitor (typically 10uF to 100uF) can be connected between the VREF pin and GND to filter out noise and improve the overall performance of the DAC. The capacitor should be placed as close as possible to the VREF pin.
  • The recommended clock frequency for the DAC53701 is between 10MHz to 40MHz. However, the device can operate at clock frequencies up to 50MHz, but with reduced performance and increased power consumption.
