The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog and digital sections of the device are powered up in a controlled manner.
The DAC5652 has a high output current capability, but it's essential to ensure that the output current is limited to prevent damage to the device or the load. Use an external resistor or current-limiting circuit to restrict the output current to the recommended maximum value.
The DAC5652's performance is affected by temperature, particularly in terms of gain error, offset error, and linearity. Ensure that the device is operated within the recommended temperature range (−40°C to 85°C) and consider using temperature compensation techniques if necessary.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device from electromagnetic interference (EMI). Additionally, consider using a low-pass filter or a buffer amplifier to further reduce noise.
The recommended clock frequency for the DAC5652 is between 10 MHz and 40 MHz. However, the device can operate at clock frequencies up to 50 MHz, but with reduced performance. Ensure that the clock frequency is stable and jitter-free to maintain optimal performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC5652AIRSLT Overview

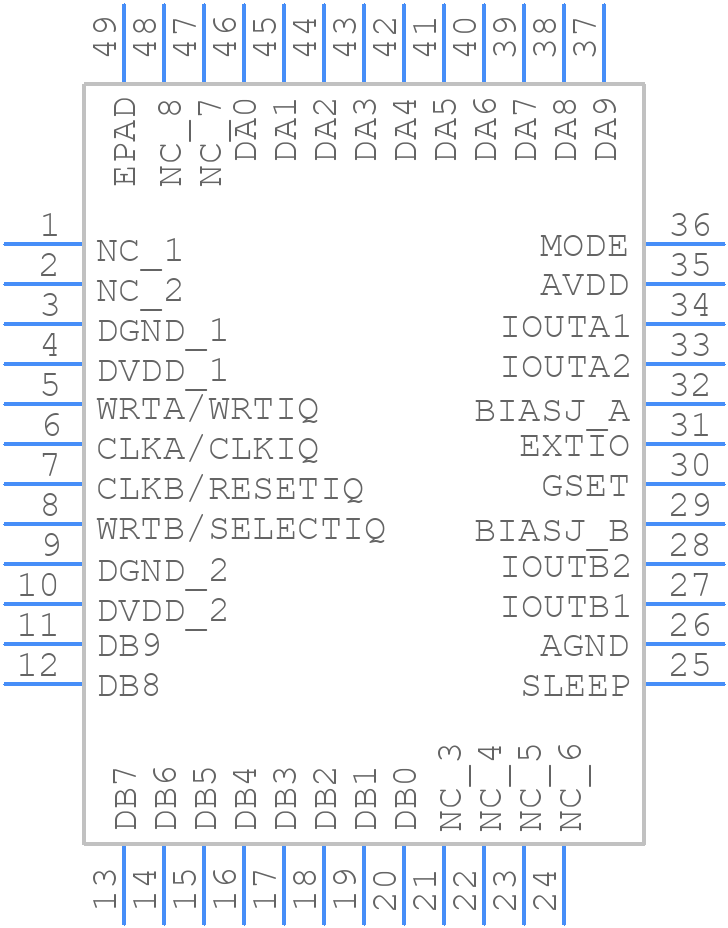

Use the download button to access the DAC5652AIRSLT schematic symbol, PCB footprint, and 3D model.
