DAC5652IPFBR - Texas Instruments

Description: Digital to Analog Converters - DAC Dual 10bit 200MSPS

Download DAC5652IPFBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

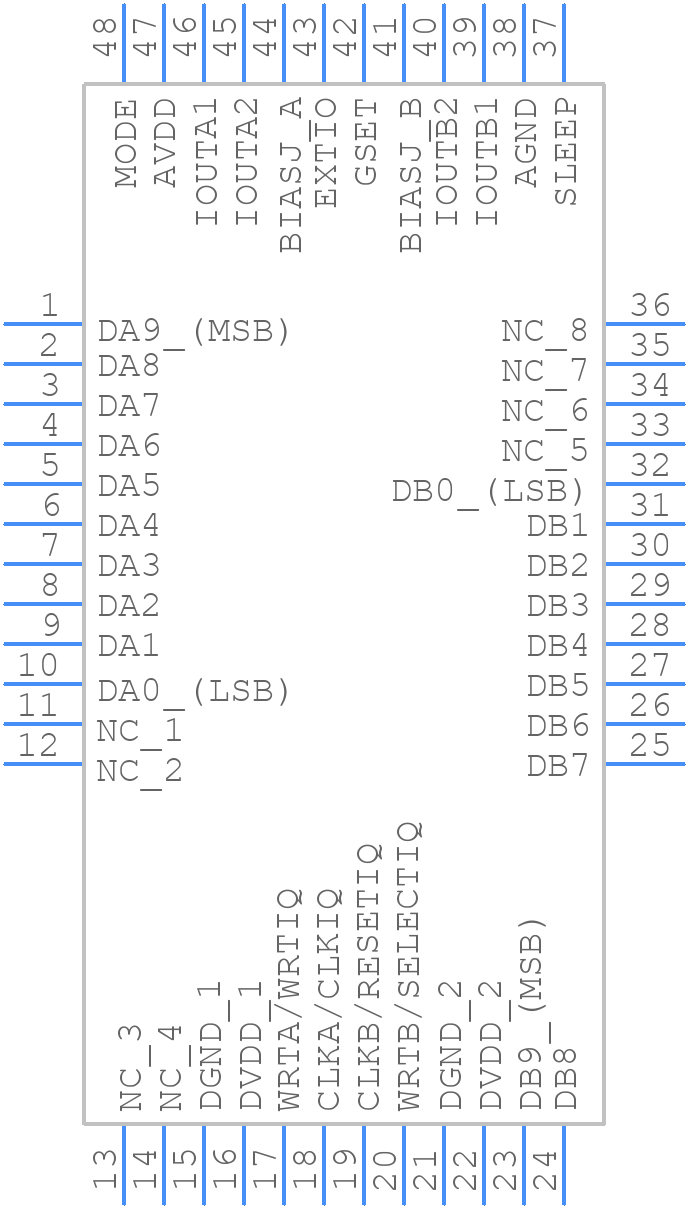

Symbol
DAC5652IPFBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC5652IPFBR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48) HEIGHT 1.2
click to zoom
3D Models
DAC5652IPFBR - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48) HEIGHT 1.2
click to zoom

DAC5652IPFBR Details

  • Manufacturer Part Number:

    DAC5652IPFBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    10

  • Number of Functions:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    275 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.02 µs

  • Supply Current-Max:

    90 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DAC5652IPFBR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog and digital sections of the device are powered up correctly.
  • To ensure accurate output voltage levels, it is essential to use a high-quality voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage range can be adjusted by using an external resistor divider network.
  • The DAC5652IPFBR can handle clock frequencies up to 100 MHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock signal.
  • To implement a bipolar output voltage range, an external amplifier circuit can be used to invert and scale the output voltage. The output voltage range can be adjusted by using an external resistor divider network and an operational amplifier.
  • The DAC5652IPFBR's performance is affected by temperature, with changes in temperature causing changes in the output voltage and current. The device is specified to operate over a temperature range of -40°C to 85°C, and the user should consider temperature compensation techniques to ensure accurate performance over the desired temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC5652IPFBR Overview

Use the download button to access the DAC5652IPFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
