DAC5670MGEM/EM - Texas Instruments

Description: The DAC5670 is a 14-bit 2.4-GSPS DAC with dual demultiplexed differential input ports

Download DAC5670MGEM/EM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

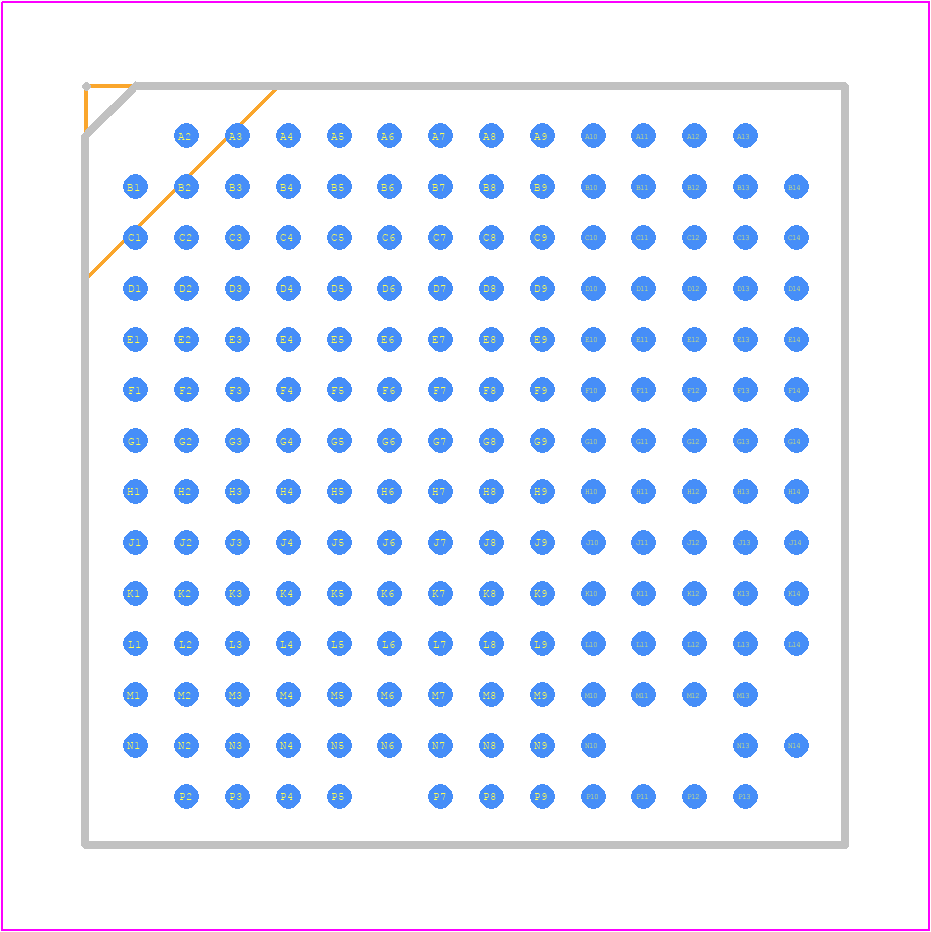

DAC5670MGEM/EM - Texas Instruments PCB footprint - BGA - BGA - GEM(S-CBGA-N192)
click to zoom
3D Models
DAC5670MGEM/EM - Texas Instruments  - 3D model - BGA - GEM(S-CBGA-N192)
click to zoom

DAC5670MGEM/EM Details

  • Manufacturer Part Number:

    DAC5670MGEM/EM

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    192

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    4.1 V

  • Analog Output Voltage-Min:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    S-CBGA-B192

  • JESD-609 Code:

    e0

  • Length:

    19 mm

  • Linearity Error-Max (EL):

    0.0458%

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    192

  • Operating Temperature-Max:

    25 °C

  • Operating Temperature-Min:

    25 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Sample Rate:

    2400 MHz

  • Seated Height-Max:

    3.3 mm

  • Settling Time-Nom (tstl):

    0.0035 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

DAC5670MGEM/EM Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog and digital sections are powered up correctly.
  • To ensure accurate voltage output, make sure to use a stable reference voltage, use a low-noise power supply, and minimize noise on the analog input pins. Also, ensure that the output voltage is within the specified range of 0 to VREF.
  • The maximum output current of the DAC5670 is 10 mA. Exceeding this current may cause damage to the device or affect its accuracy.
  • During asynchronous updates, the SYNC pin should be held low to prevent the DAC from updating the output voltage. When the SYNC pin is high, the DAC updates the output voltage based on the input data.
  • The CLR pin is used to clear the DAC output to a zero-scale voltage (typically 0 V) when it is asserted low. This is useful for resetting the output voltage to a known state.
