DAC5672IPFBRG4 - Texas Instruments

Description: IC DAC 14BIT DUAL 275MSPS 48TQFP

Download DAC5672IPFBRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

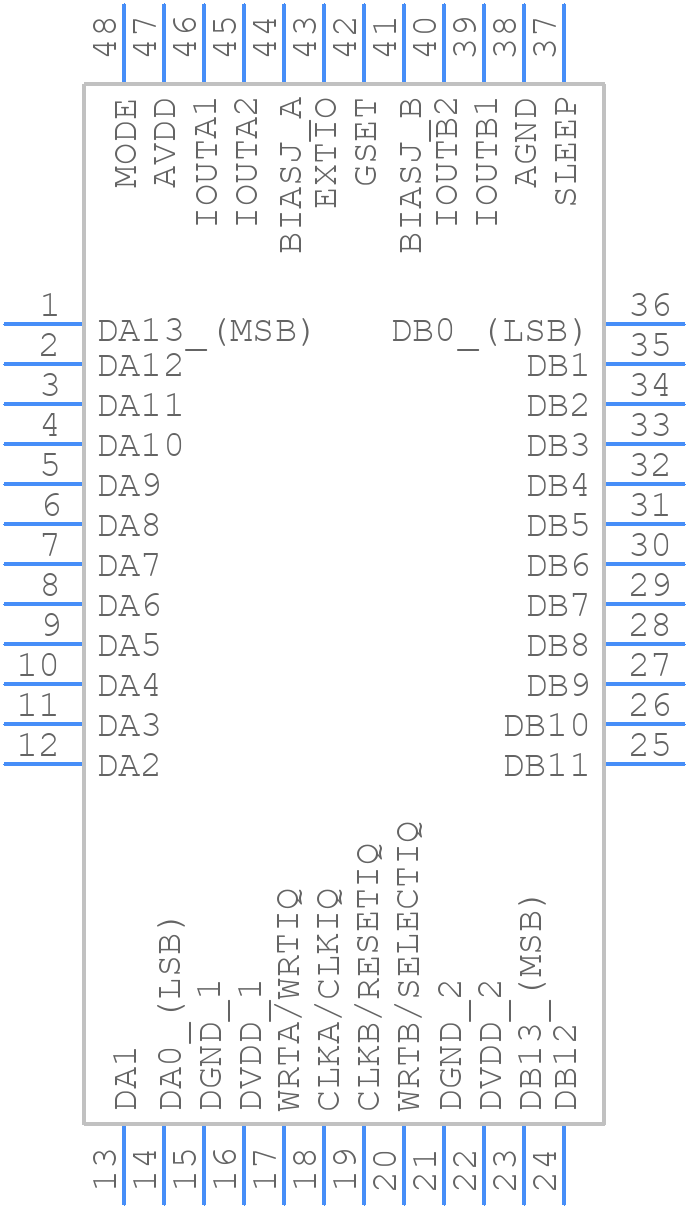

DAC5672IPFBRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC5672IPFBRG4 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom
3D Models
DAC5672IPFBRG4 - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom

DAC5672IPFBRG4 Details

  • Manufacturer Part Number:

    DAC5672IPFBRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    GREEN, PLASTIC, TQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    14

  • Number of Functions:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.02 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DAC5672IPFBRG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the analog supply (VCCA) first, followed by the digital supply (VCCD), and then the clock signal. This ensures proper initialization of the device.
  • The output voltage range of the DAC5672IPFBRG4 is dependent on the reference voltage (VREF) and the gain setting. Ensure that the output voltage range is within the specified limits to avoid saturation or clipping.
  • Clock jitter can affect the DAC's performance by introducing noise and distortion in the output signal. It is recommended to use a low-jitter clock source and to follow proper PCB design and layout practices to minimize clock jitter.
  • To implement a bipolar output configuration, connect the output of the DAC to an external amplifier or op-amp with a gain of -1. This will invert the output signal and provide a bipolar output range.
  • It is recommended to separate the digital and analog signal traces on the PCB, and to use proper shielding and grounding techniques to minimize noise and interference. Follow the datasheet's recommended layout and routing guidelines for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC5672IPFBRG4 Overview

Use the download button to access the DAC5672IPFBRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
