DAC5675IPHPG4 - Texas Instruments

Description: IC DAC 14-BIT 400 MSPS 48-HTQFP

Download DAC5675IPHPG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

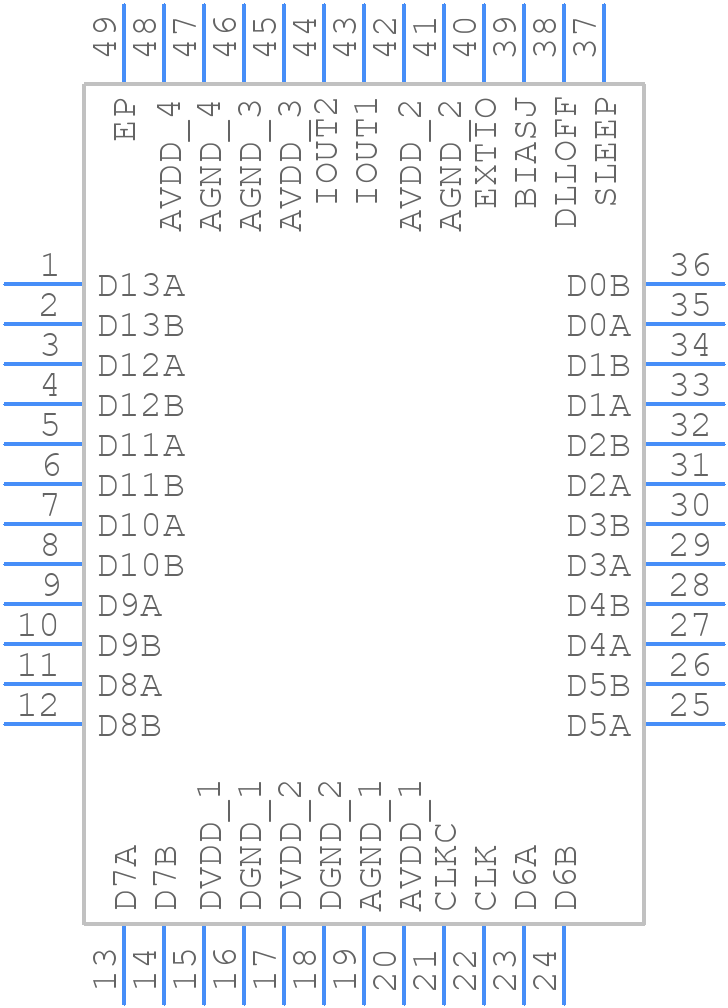

DAC5675IPHPG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC5675IPHPG4 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP (S-PQFP-G48)_1
click to zoom
3D Models
DAC5675IPHPG4 - Texas Instruments - 3D model - Quad Flat Packages - PHP (S-PQFP-G48)_1
click to zoom

DAC5675IPHPG4 Details

  • Manufacturer Part Number:

    DAC5675IPHPG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    3.9 V

  • Analog Output Voltage-Min:

    2.15 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    400 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.012 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DAC5675IPHPG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog and digital sections of the device are powered up in the correct order.
  • The DAC5675 has a high output current capability, but it's essential to ensure that the output current is limited to prevent damage to the device or the load. Use an external resistor or current-limiting circuit to restrict the output current to the recommended maximum value.
  • Clock jitter can affect the DAC5675's performance, particularly in high-frequency applications. It's essential to use a low-jitter clock source and to ensure that the clock signal is properly filtered and decoupled to minimize the impact of clock jitter.
  • To optimize the DAC5675's performance for low-distortion applications, ensure that the analog supply voltage (AVCC) is well-regulated and noise-free. Also, use a low-pass filter on the output to remove high-frequency noise and distortion. Additionally, consider using a differential output configuration to reduce even-order harmonics.
  • The recommended layout and routing for the DAC5675 involves separating the analog and digital sections of the device, using a solid ground plane, and minimizing the length of the output traces. Also, ensure that the clock signal is routed away from the analog output traces to prevent noise coupling.
