DAC5686IPZP - Texas Instruments

DAC5686IPZP Details

• Manufacturer Part Number:

  DAC5686IPZP

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

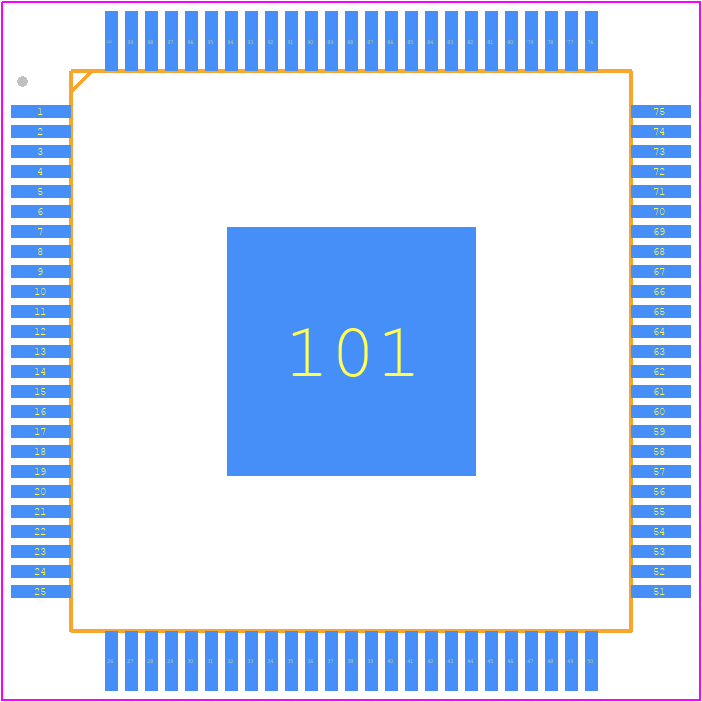

• Part Package Code:

  QFP

• Pin Count:

  100

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.40

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog Output Voltage-Max:

  4.1 V

• Analog Output Voltage-Min:

  2.5 V

• Converter Type:

  DAC 16BIT

• Input Bit Code:

  2'S COMPLEMENT BINARY

• Input Format:

  SERIAL, PARALLEL, WORD

• JESD-30 Code:

  S-PQFP-G100

• JESD-609 Code:

  e4

• Length:

  14 mm

• Linearity Error-Max (EL):

  0.018%

• Moisture Sensitivity Level:

  3

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  TQFP100,.63SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  500 MHz

• Seated Height-Max:

  1.2 mm

• Settling Time-Nom (tstl):

  0.012 µs

• Supply Current-Max:

  55 mA

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  14 mm
