DAC5687IPZPR - Texas Instruments

Description: Digital to Analog Converters - DAC 16-bit 500 MSPS 2-8x Interpolat'g Dual-Ch

Download DAC5687IPZPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DAC5687IPZPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

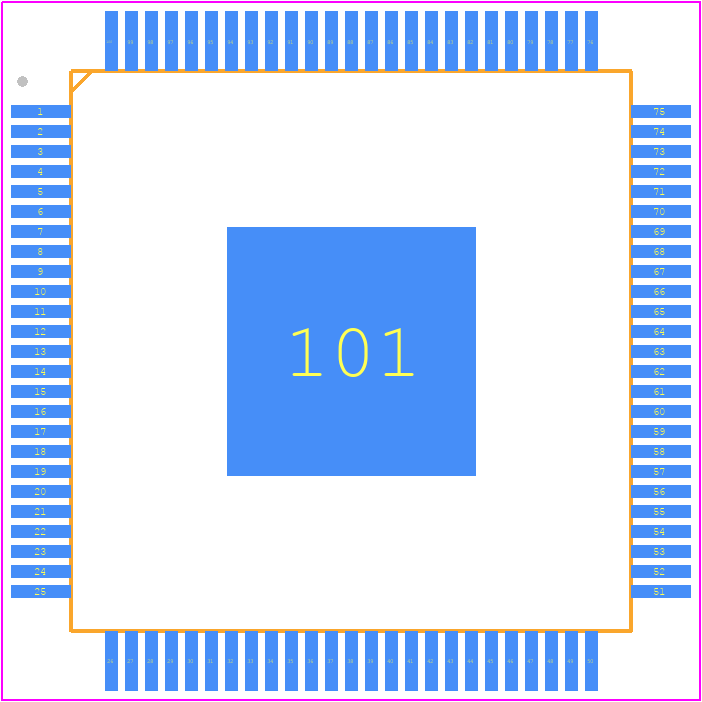

DAC5687IPZPR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PZP (S-PQFP-G100)
click to zoom
3D Models
DAC5687IPZPR - Texas Instruments - 3D model - Quad Flat Packages - PZP (S-PQFP-G100)
click to zoom

DAC5687IPZPR Details

  • Manufacturer Part Number:

    DAC5687IPZPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    100

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    4.1 V

  • Analog Output Voltage-Min:

    2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP100,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    500 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.0104 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

DAC5687IPZPR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog supply voltage (AVCC) first, followed by the digital supply voltage (DVCC) and then the clock signal. This ensures proper initialization of the device.
  • To ensure accurate voltage output, it is essential to use a low-noise, low-impedance voltage reference, and to decouple the analog supply voltage (AVCC) with a 10uF capacitor. Additionally, the output voltage should be filtered with a low-pass filter to reduce noise and ripple.
  • The DAC5687IPZPR can handle clock frequencies up to 50 MHz. However, it is recommended to operate the device at a clock frequency of 20-30 MHz for optimal performance.
  • To implement a bipolar output voltage range, you can use an external amplifier circuit to invert and scale the output voltage. Alternatively, you can use an external voltage reference to generate a negative voltage supply for the DAC.
  • The settling time of the DAC5687IPZPR is approximately 2.5us. This means that the output voltage may take up to 2.5us to settle to its final value after a code change. You should ensure that your system design takes into account this settling time to avoid errors or inaccuracies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC5687IPZPR Overview

Use the download button to access the DAC5687IPZPR schematic symbol, PCB footprint, and 3D model.
