Description:Digital to Analog Converters - DAC True 12-bit, 1-ch, SPI/I2C, voltage-output DAC in WSON package with precision internal reference 10-VSSOP -40 to 125
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
The output voltage settling time can be minimized by using a low-pass filter at the output, and by ensuring that the output is not loaded with a high capacitance. Additionally, the DAC60501 has a built-in output slew rate control that can be used to slow down the output transition and reduce settling time.
The DAC60501's performance is affected by temperature, with the output voltage drift and gain error increasing with temperature. However, the device is designed to operate over a wide temperature range (-40°C to 125°C), and the datasheet provides detailed information on the temperature coefficients of the various parameters.
To ensure accurate output voltage when using an external reference voltage, it is essential to buffer the reference voltage with a low-noise, high-impedance buffer amplifier, and to ensure that the reference voltage is stable and noise-free. Additionally, the external reference voltage should be within the recommended range of 1.2V to 3.3V.
The recommended layout and routing for the DAC60501 involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the traces. Additionally, it is recommended to use a low-noise, low-impedance power supply, and to decouple the power supply lines with capacitors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC60501MDGST Overview

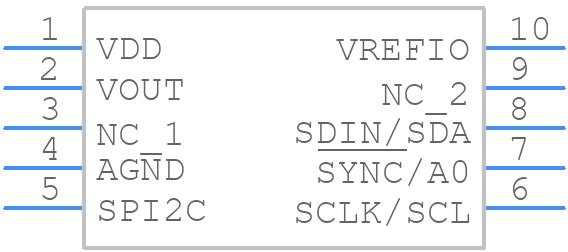

Use the download button to access the DAC60501MDGST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC60,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
