DAC60501MDQFT - Texas Instruments

Description: True 12-bit, 1-ch, SPI/I2C, voltage-output DAC in WSON package with precision internal reference<

Download DAC60501MDQFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

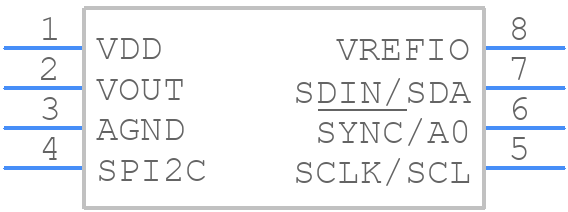

Symbol
DAC60501MDQFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC60501MDQFT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DQF
click to zoom
3D Models
DAC60501MDQFT - Texas Instruments - 3D model - Small Outline No-lead - DQF
click to zoom

DAC60501MDQFT Details

  • Manufacturer Part Number:

    DAC60501MDQFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2019-07-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DAC60501MDQFT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise voltage reference (VREF) and to decouple the power supply lines (VDD) with adequate capacitors. Additionally, ensure that the output load is within the specified range to prevent output voltage droop.
  • The maximum output current capability of the DAC60501MDQFT is 5 mA. Exceeding this limit may cause device damage or affect the output voltage accuracy.
  • The digital interface of the DAC60501MDQFT is a 3-wire serial interface. Ensure that the clock frequency is within the specified range (10 kHz to 50 MHz), and the data is transmitted in the correct format (MSB first). Also, ensure that the CS (chip select) pin is properly controlled to prevent unwanted data transmission.
  • The DAC60501MDQFT is a high-power device and requires proper thermal management. Ensure that the device is mounted on a suitable heat sink, and the PCB is designed to dissipate heat efficiently. The maximum junction temperature (TJ) should not exceed 150°C.
