- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DAC60501ZDQFT
- Part Number DAC60501ZDQFT
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - DQF
- Released Date Dec 28, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DAC60501ZDQFT Details
-
Manufacturer Part Number:
DAC60501ZDQFT
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.40
-
Date Of Intro:
2019-07-13
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Analog Output Voltage-Max:
5.5 V
DAC60501ZDQFT Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
-
To ensure accurate voltage output, it is essential to use a stable and low-noise voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
-
The maximum output current of the DAC60501 is 5 mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
-
During power-up and power-down, it is recommended to keep the digital inputs (SCL, SDA, and CS) in a high-impedance state or tied to a fixed logic level to prevent unwanted device operation or latch-up conditions.
-
To minimize noise and ensure accurate operation, it is recommended to keep the analog and digital signal paths separate, use a solid ground plane, and place decoupling capacitors close to the device's power pins. Additionally, the output voltage trace should be routed away from noisy digital signals.
Trust Checks
Community Provided
System Verified
Community Approved
DAC60501ZDQFT Overview

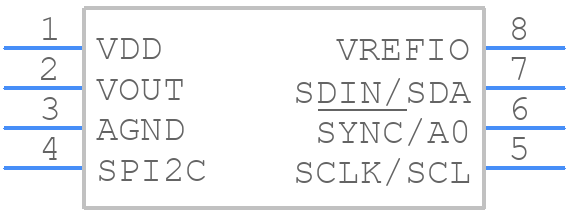

Use the download button to access the DAC60501ZDQFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC60,
or try a keyword search, such as Digital to Analog Converters
